Harvesting Belt "LE METEOR"
Model
Series
Harversting Belts / Conveyors
Transaction Process
Please contact the manufacturer/supplier.
Payment
Contact the manufacturer/supplier.
Delivery
Contact the manufacturer/supplier.
Shipment
Contact the manufacturer/supplier.
Origin
Contact the manufacturer/supplier.
Description

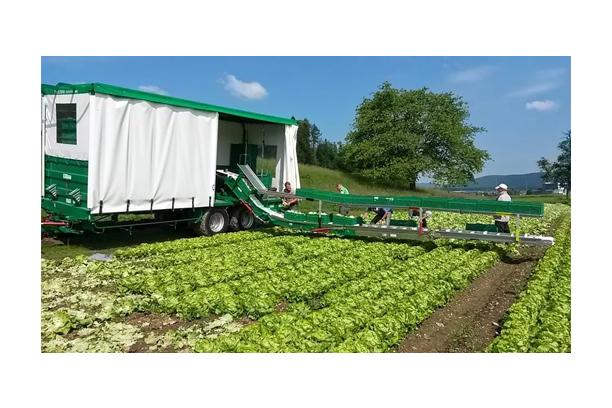

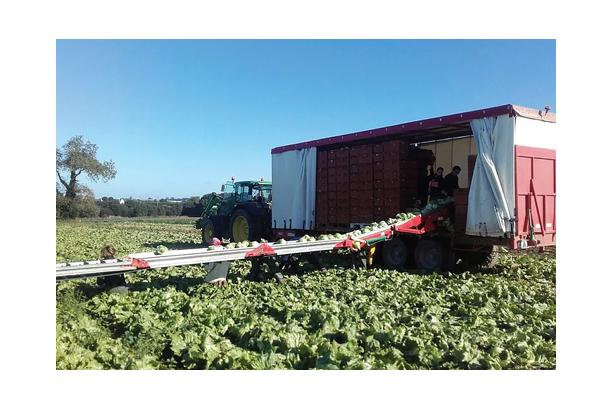

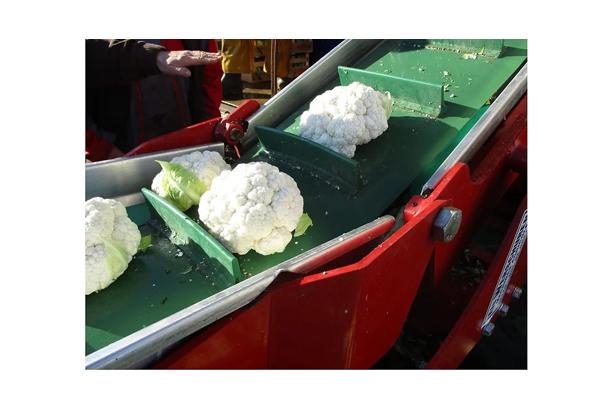

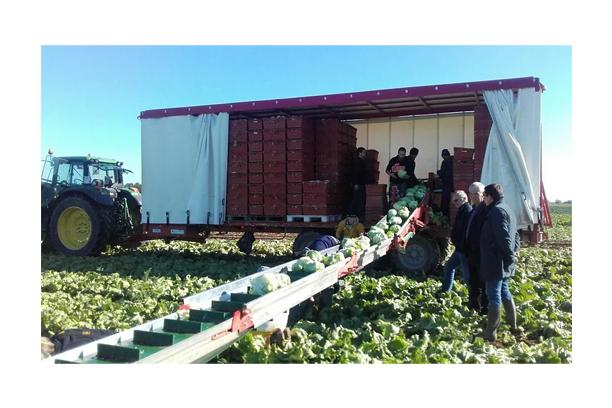

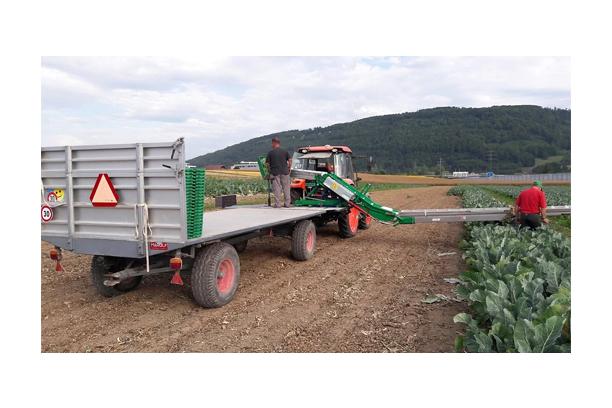

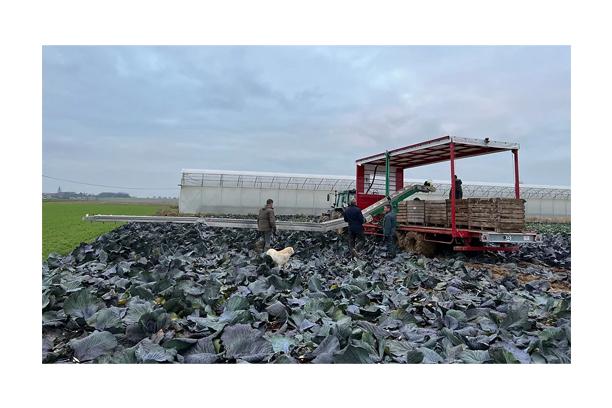

Range of harvesting belts with PVC belt (drive by pinions), adapted to the needs of the harvester.
- From 8.00m to 10.00m useful length
- Complementary belt to the Delecroix or La Bretonne trailer
- Robust and functional harvesting belt, with a large capacity to increase productivity
- Simplified harvest
RANGE
| TYPES | TMH 80 | TMH 100 |
|---|---|---|
| Useful length | 8.00 m | 10.00 m |
| Number of boxes | 4 | 5 |
| Number of boxes hydraulic unfolding |
3 | 3 |
| Number of boxes manual unfolding |
1 | 2 |
STANDARD EQUIPMENT
| Steel starter frame |
| 2 first steel boxes with aluminum boxes |
| Subsequent boxes and last aluminum element |
| Cap 0.75 m (interior trailer reception area) |
| PVC strip 350 mm wide |
| Stainless steel upper slides for guiding the belt |
| Cleats 60 mm high, at 250 mm intervals |
| Grip roller drive and tension maintenance system |
| Hydraulic motorization with variable speed drive on distributor |
| Conveyor stop by photoelectric detector |
| Left exit with front controls (or right exit, rear controls) |
OPTIONS
| Standard packing table 3 or 4 boxes perpendicular and swiveling |
| Wrapping table 3 or 4 boxes parallel to the belt (possible addition of rolls) |
| Hydraulic displacement in the trailer: external rollers in rail or on the edge of the platform |
| Stainless steel trays on the first 2 steel boxes and stainless steel edges on the aluminum boxes (excluding the last element) |
| Pass-through frame for passage over pallets |
| Pivot for right or left outlet |
| Epoxy paint (primer) |
| No custom cleats |
| Hydro-electric reel |
| Right exit with front controls (or left exit, rear controls) |
