XXL Semi-carried Belt 20m
Model Name
THXL 100
Series
Harversting Belts / Conveyors
View All
Data
Catalog-Delecroix Harversting-XXL Semi-carried Belt 20m
Manufacturer information
provider logo
DELECROIX HARVESTING

Haversting Equipment Manufacturer, Agricultural, Harvesting Belts, Vegetable Trailers, Floretting Machine and more

Problem with product info?
Update request
Manufacturer
DELECROIX HARVESTING
Product Type
Machine
Brand
-
SKU
138033
Product Name
XXL Semi-carried Belt 20m
Model Name
THXL 100, THXL 120, THXL 140, THXL 160, THXL 180, THXL 200
Size
-
Weight
-
Product Details

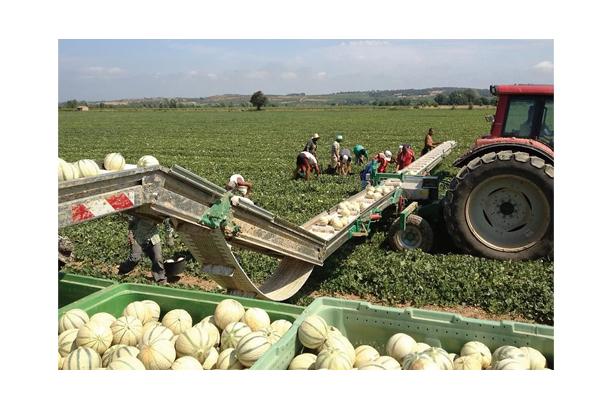

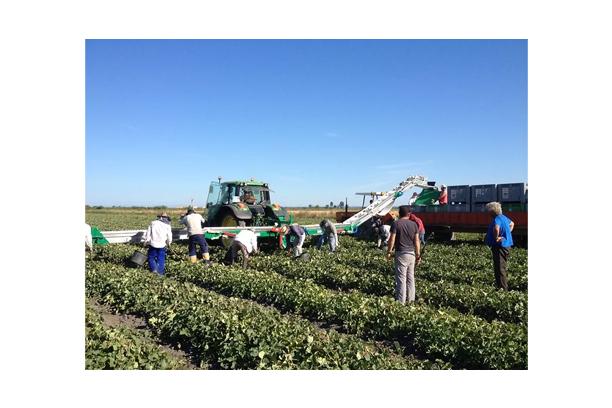

Range of harvesting belts with modular belt (drive by pinions), adapted to the needs of the harvester.

  • Up to 20m useful length, and large capacity
  • Belt designed for harvesting heavy fruits and vegetables on large plots
  • Drop support system to guarantee quality


RANGE

TYPES THXL 100 THXL 120 THXL 140 THXL 160 THXL 180 THXL 200
Longueur totale 10 m 12 m 14 m 16 m 18 m  20 m
Nombre de caissons aluminium
côté élévation		 1 1 2 2 3 3
Nombre de caissons aluminium
côté opposé à l'élévation		 2 2 3 3 4 4
Nombre de caissons aluminium
à dépliage hydraulique		 2 2 4 4 4 4
Longueur utile (hors col de cygne) 6 m 8 m 10 m 12 m 14 m 16 m


STANDARD EQUIPMENT

Chassis on 1 axle

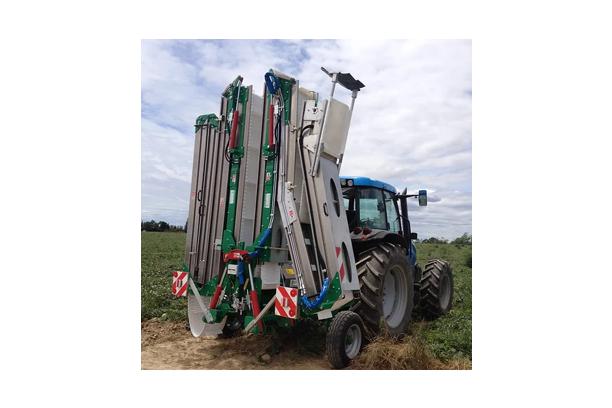

Dimensions of the folded machine: width 3.00 m, height 4.00 m (3.50 m in transport position)
Monohull aluminum boxes with 100 mm high edges
Gooseneck elevation on one side for transfer to the pallets of a follower plate
Elevation to 2.20 m for 1 level of pallox on the platform

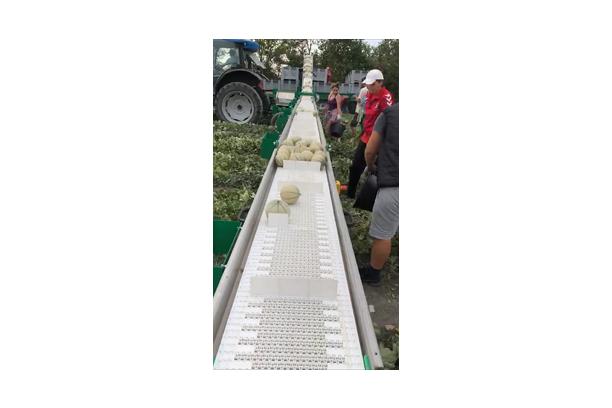

Modular polypropylene band 400 mm wide; reinforced edge modules
Cleats 75 mm high, at 500 mm intervals
Drive by 7 double-toothed, high-resistance sprockets
Hydraulic motorization with variable speed drive on hydroelectric distributor
Drop support system to guarantee quality


OPTIONS

Elevation to 3.00 m for 2 levels of boxes on the platform
No custom cleats
Automatic working height maintenance system on the opposite side of the elevation
