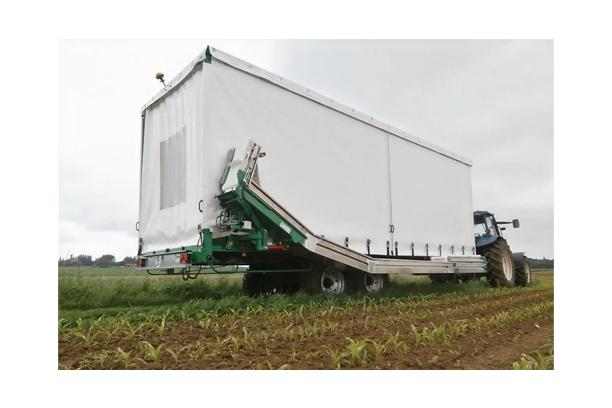

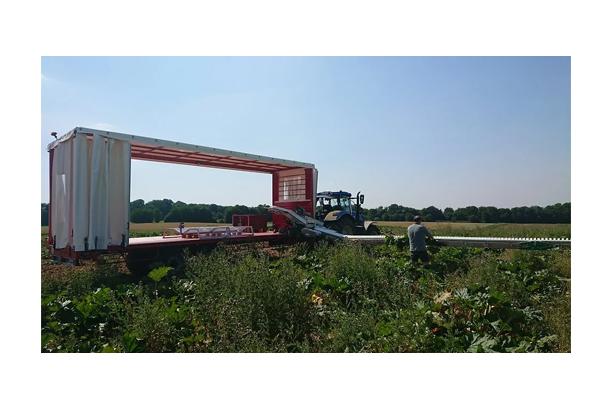

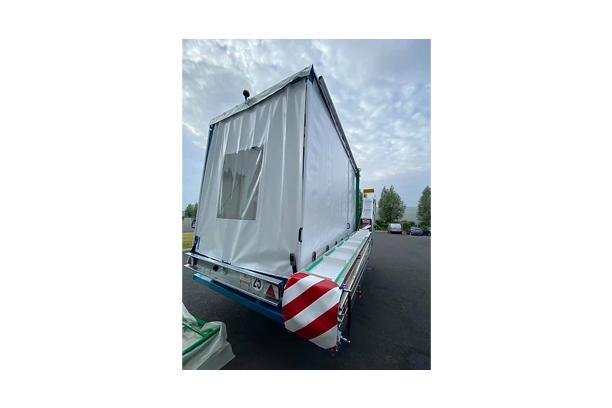

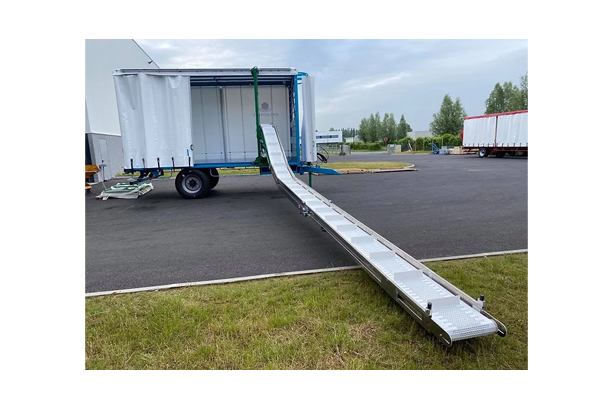

DELECROIX Side Belt
Model Name
BD 70
Series
Harversting Belts / Conveyors
View All
Data
Catalog-Delecroix Harversting-Side Belt
Manufacturer information
provider logo
DELECROIX HARVESTING

Haversting Equipment Manufacturer, Agricultural, Harvesting Belts, Vegetable Trailers, Floretting Machine and more

Problem with product info?
Update request
Manufacturer
DELECROIX HARVESTING
Product Type
Machine
Brand
-
SKU
138031
Product Name
DELECROIX Side Belt
Model Name
BD 70, BD 80, BD 90, BD 100, BD 110
Size
-
Weight
-
Product Details

Range of harvesting belts adapted to the needs of the harvester, folding along a vegetable trailer.

  • Up to 11.00m useful length
  • Optimized budget and simplified harvest
  • Complementary to the Delecroix or La Bretonne trailer
  • Versatile harvesting belt, with a large capacity to increase productivity


RANGE

TYPE BD 70 BD 80 BD 90 BD 100 BD 110
Useful length 7.50 m 8.00 m 9.00 m 10.00 m 11.00 m


STANDARD EQUIPMENT

Chassis fixed to the trailer: interior mounting (movement in the floor rails) or exterior trailer mounting (exterior floor rail and rail installed on the edge of the roof)
Monohull aluminum boxes with 0.75 m cap (reception area)
Modular polypropylene belt 400 mm wide with reinforced edge modules
Cleats 75 mm high, at 380 mm intervals
Driven by 4 double-tooth pinions
Belt lifting with hydraulic cylinder

Hydraulic motorization with variable speed drive on distributor
Conveyor stop by photoelectric detector


OPTIONS

Packing table 3 or 4 cases (facing the conditioner)
Removable model and removal aid
System for the road: removable axle and removable end hitch
Hydraulic displacement in the trailer (if chassis with internal trailer assembly)
Cap 1.00 m (reception area)
No custom cleats
Hydro-electric reel
Kit for crating along the belt
Salad sprinkler kit (aluminum tank under the floor of the trailer)
