DELECROIX Vegetable Trailer
Model Name
-
Series
Vegetable Trailers
View All
Data
Catalog-Delecroix Harversting-Vegetable Trailer
Manufacturer information
provider logo
DELECROIX HARVESTING

Haversting Equipment Manufacturer, Agricultural, Harvesting Belts, Vegetable Trailers, Floretting Machine and more

Problem with product info?
Update request
Manufacturer
DELECROIX HARVESTING
Product Type
Machine
Brand
-
SKU
138038
Product Name
DELECROIX Vegetable Trailer
Model Name
-
Size
-
Weight
-
Product Details

Range of sheeted vegetable trailers adapted to the needs of the harvester.

  • From 7.40m to 12.00m designed to accommodate a harvesting belt
  • Large storage capacity trailers (up to 22.5T GVW ) designed to increase productivity and improve working conditions


RANGE

LENGTH WIDTH NUMBER OF AXLES PTAC PAYLOAD STANDARD WHEELS FRAME
7.40m 2.50m 2 15,600 11,000 400 / 60-22.5 250x100-6
8.40m 2.50m 2 15,600 11,000 400 / 60-22.5 300x100-6
9.40m 2.50m 2 20,000 15,000 500 / 45-22.5 300x100-6
10.40m 2.50m 2 or 3 20,000 15,000 500 / 45-22.5 300x100-6
11 or 12m 3.00m 3 22,500 16,000 500 / 60-22.5 300x100-6


STANDARD EQUIPMENT

Fixed bar, fixed crutch Fixed axles Central and outer rails (UPN80) 900 gr tarpaulin with double tarpaulin roof, front hoops Side bars step, storage box


OPTIONS

Covering: side curtains in 2 parts and roof with insulation

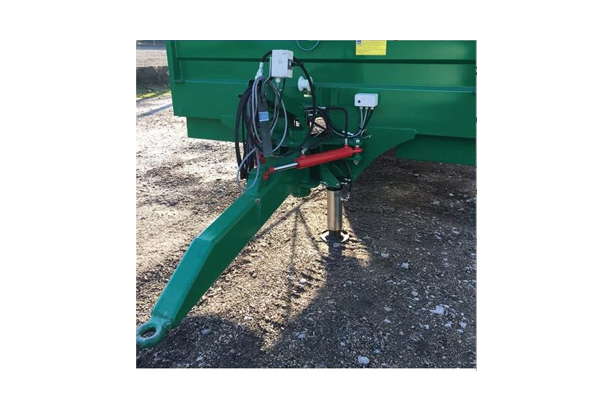

Hydraulic stand or crank
Hydraulic boom: 1 or 2 cylinders
Spring or hydraulic suspension boom (front or rear)
Hydraulic tailgate
Axles: Bogie, tandem, trailing or steering axles (crabbing)
Drive axle: 1 powered axle
Extension 2 beams at the back
Non-slip floor
Sprinkling kit for salads on harvesting belt with aluminum tank (1200 or 2500 l, depending on model)
Rail drilled in the roof for tension bars (load safety)
Possibility of single trays without tarpaulin
3 m wide trailers with interior fittings for packaging automation
Hydro-electric reel integration for carpet in central rail or roof

In addition to this, you will need to know more about it.
