"LA BRETONNE" Vegetable Trailer
Model Name
-
Series
Vegetable Trailers
View All
Data
Catalog-Delecroix Harversting-"LA BRETONNE" Vegetable Trailer
Manufacturer information
provider logo
DELECROIX HARVESTING

Haversting Equipment Manufacturer, Agricultural, Harvesting Belts, Vegetable Trailers, Floretting Machine and more

Problem with product info?
Update request
Manufacturer
DELECROIX HARVESTING
Product Type
Machine
Brand
-
SKU
138039
Product Name
"LA BRETONNE" Vegetable Trailer
Model Name
-
Size
-
Weight
-
Product Details

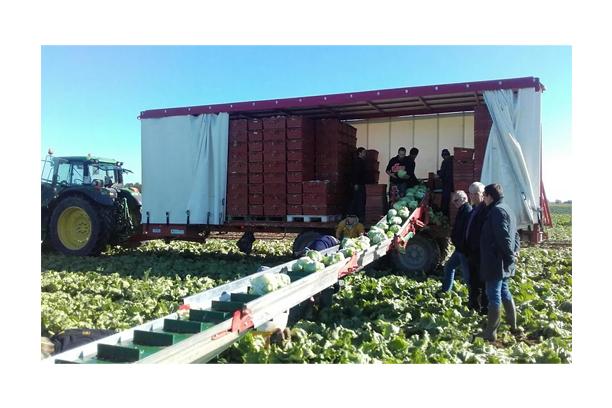

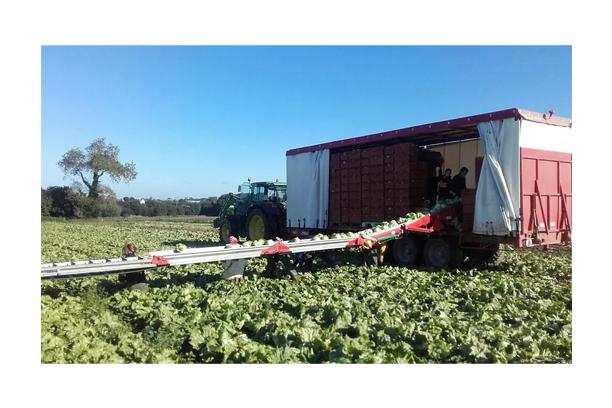

Range of covered vegetable trailers adapted to the needs of the harvester.

  • From 5.40m to 8.40m designed to accommodate a harvesting belt
  • Large storage capacity trailers (14T GVW) designed to increase productivity and improve working conditions


RANGE

LENGTH WIDTH NUMBER OF AXLES PTAC PAYLOAD STANDARD WHEELS FRAME
5.40m 2.50m 2 14,000 10,000 400 / 60-22.5 200x100-6
5.70m 2.50m 2 14,000 10,000 400 / 60-22.5 200x100-6
6.40m 2.50m 2 14,000 10,000 400 / 60-22.5 200x100-6
6.70m 2.50m 2 14,000 10,000 400 / 60-22.5 200x100-6
7.40m 2.50m 2 14,000 10,000 400 / 60-22.5 200x100-6
7.70m 2.50m 2 14,000 10,000 400 / 60-22.5 200x100-6
8.40m 2.50m 2 14,000 10,000 400 / 60-22.5 250x100-6


STANDARD EQUIPMENT

Hydraulic boom, fixed stand
Fixed straddle axles
Central and outer rails (UPN 80)
900gr tarpaulin with single tarpaulin roof, front hoops
Side curtains in 2 parts
Extension 2 beams at the back
Side bars with step, open storage box


OPTIONS

Hydraulic stand or crank
Spring or hydraulic suspension boom (front or rear)
Hydraulic tailgate
Axles: Bogie, tandem, trailing or steering axles (crabbing)
Non-slip floor

Sprinkling kit for salads on harvesting belt with aluminum tank (1200 l maximum)
Rail drilled in the roof for tension bars (load safety)
Possibility of single trays without tarpaulin
Hydro-electric reel integration for carpet in central rail or roof
