Product Details

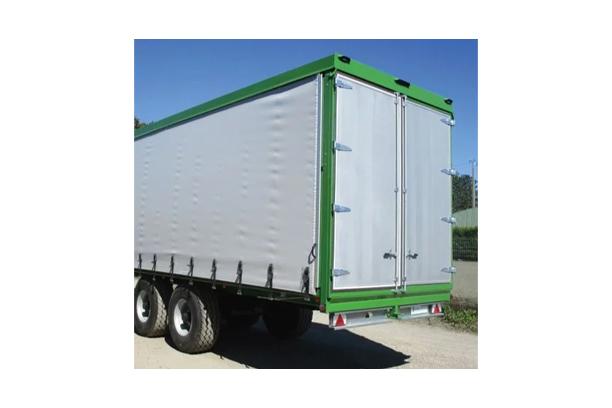

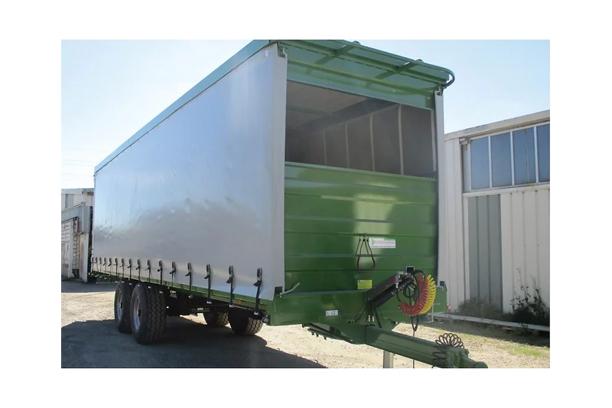

Semi-mounted transport trailers adapted to the needs of the harvester.

  • Range of transport trailers, robust and functional, with a wide choice of options
  • From 25km / h to 40 km / h depending on the options of the trailer
  • Large storage capacity to increase productivity and improve working conditions


RANGE

LENGTH

 WIDTH NUMBER OF AXLES PTAC PAYLOAD BRAKING STANDARD WHEELS FRAME
5.40m to 8.40m 2.50m 2 14,000 10,000 Hydraulic 25 km / h 385 / 65R22.5

200x100-6 (250 in 8.40m)
7.40m or 8.40m 2.50m 2 15,600 11,000 Hydraulic 25 km / h 385 / 65R22.5 250x100-6 (300 in 8.40m)
9.40m or 10.40m 2.50m 2 or 3 20,000 15,000 Hydraulic 25 km / h 385 / 65R22.5 300x100-6
7m to 10m 2.50m 2 20,000 15,000 40 km / h pneumatic 385 / 65R22.5 300x100-6
9m to 12m 2.50m 2 23,500 18,000 40 km / h pneumatic 385 / 65R22.5 300x100-6
11m or 12m 2.50m 2 32,000 25,000 Pneumatic or hydraulic 25 km / h 385 / 65R22.5 300x100-6


STANDARD EQUIPMENT

Fixed boom, fixed crutch
Bogie or tridem if 3 axles
900g tarpaulin with single tarpaulin roof, front hoops


OPTIONS

Covering: side curtains in 2 parts and roof with insulation
Hydraulic stand or crank
Hydraulic boom: 1 or 2 cylinders
Spring or hydraulic suspension boom (front or rear)
Hydraulic tailgate
Axles: tandem, trailing axles or steering axles (crabbing)
Non-slip floor
Rail drilled in the roof for tension bars (load safety)

Addition of side posts (removable if necessary) and support bars with telescopic beams (PL)

Metal roof
Rear doors type PL
Possibility of single trays without tarpaulin
