DAEHO COOLER

DAEHO COOLER

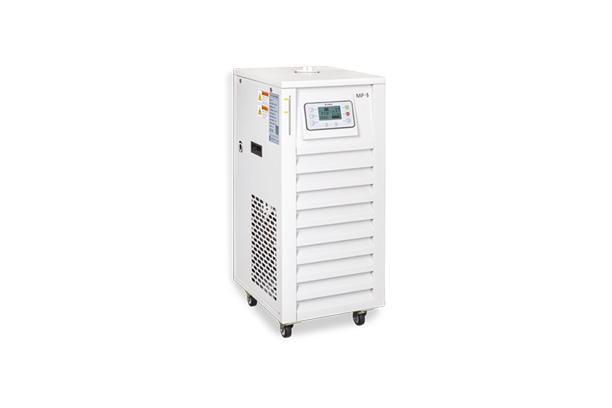

Air Cooled Type Mini Water Chiller

Model

Series

Water Chiller


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Please contact Komachine.


Description

M/MP-SERIES

Air Cooled type is that the refrigerant gas heat generated in process of condensation is cooled with air by organization compressor Easily installed in a compact size, high efficiency cooling capacity, free water supply, stable temperature control




SERIES


M-1/MP-1


M-2/MP-2


M-3/MP-3


M-4/MP-4


M-5/MP-5


M-6/MP-6


M-7/MP-7


M-8/MP-8


MP-B Series






CHARACTERISTIC

- Easily available by using simple controller

- Easy to move and install at any place with a small size and attached caster

- Possible to install indoors with lessnoisy

- Possible to interlock with other equipments by using 485 communication port
  MP-series option




FLOW DIAGRAM


  Ref. Gas Line     Water Line

  • ACompressor
  • BAircooled condenser
  • CFilter drier
  • DExpansion tube
  • EEvaporator & Tank
  • FLevel sensor
  • GCirculation pump
  • HWater Supply
  • IWater Return
  • JDrain Valve





STANDARD SPECIFICATION

ItemM-1/MP-1M-2/MP-2M-3/MP-3M-4/MP-4M-5/MP-5M-6/MP-6M-7/MP-7M-8/MP-8
Compressor Output (kW)0.09(1/8)0.18(1/4)0.25(1/3)0.37(1/2)0.75(1)1.12(1.5)
Cooling Capacity (at 20℃,Kcal/h)25A(1”)8001,0001,4002,4003,500
Port Size(Inlet/Outlet)15(1/2")20(3/4")
Port Size(Drain))15(1/2")
Cooling MediumWater, Anti freeze, D.I water, Distilled water
RefrigerantR-134aR-22 or 404A
Weight(kg)31373843477683115
Pump Output(Kw)9494949494370370550
Pump Head(M)66666151515
Max.Pump Flow Rate(L/min)88888303030
DisplayDigital Automatic Temperature Control
Fan Motor(Φ/W)150/4200/6225/9200/9250/16300/100350/100
Water Tank(L)3568172026
Dimension405 x
390 x
400"
640 x
350 x
410"
405 x
335 x
730"
640 x
440 x
410"
420 x
340 x
790"
600 X
485 x
755"
550 x
470 x
930"
700 x
535 x
930"
Total Power Consumption0.250.330.40.811.271.82
Power(v)AC 1Φ 220V 50/60Hz

※ All the details can be changed without any notice with the products developed.
(Option : ±0.1℃ temperature control, Ultralow-temperature Chiller(-80℃), Customized order)




PURPOSE OF USE



Laser machinery, Welding machine, Laboratory, Chemical reaction machinery, ITS, Medical instruments, CNC controller, Computing room, Wire cutting, Injection, Extrude molding machine, Grinder, High frequency / Ultrasonic equipment, Semi conductor equipment, Every kind heat reaction, multifunction, Custom made solution
