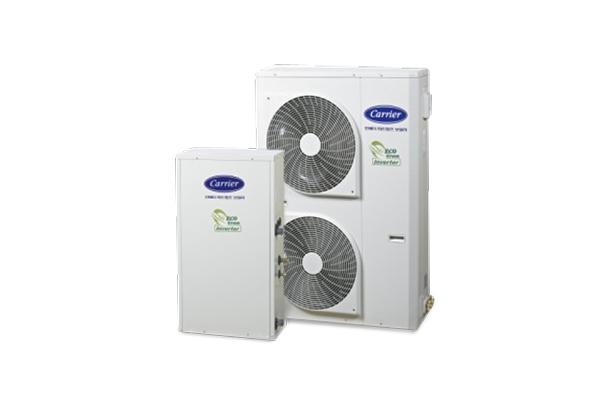

INVERTER HYB RID
Indoor space, floor heating, and hot water systems are available by applying a principle that absorbs low temperature heat sources and transmits them to high temperature heat media with one unit.
CHARACTERISTIC
- Saving energy inverter, heating hot water to 80 degree over heat pump technology
- Connected with a heat pump outdoor unit, heat pump makes heating, floor heating, hot water possible
- Minimized CO2 emmision eco-friendly high efficiency eco-green system
- Saving the electricity at about 60% saving less than existing midnight electricity
- Lightest, moving and easy to installation separate type system
- Easy to use by operating of remote control at smart mobile
Inverter Hybrid Heat Pump?
FLOW DIAGRAM
STANDARD SPECIFICATION
| Item | KEPCO-Type | Commercial-Type | |||
|---|---|---|---|---|---|
| AWH-025XB | AWB-016V | AWC-025X | AWD-025XB | ||
| Raged Heating Capacity(Kw) | 25 | 16.5 | 25 | 25 | |
| Rated Power Consumption(Kw) | 10.4 | 5.55 | 10 | 10.4 | |
| Rated Operation Current(A) | 18 | 27 | 17.5 | 18 | |
| Max.Power Consumption(Kw) | 14.5 | 9 | 11.8 | 14.5 | |
| Cold climate area heaing capacity(Kw) | 20 | 11.5 | 18 | 20 | |
| Cold climate area Power Consumption(Kw) | 13.1 | 6.6 | 11.8 | 13.1 | |
| Combined Efficiency KSCOP_C | 25 | - | - | 2.5 | |
| Flow Rate(LPM) | Recommended flow rate | 40-50 (Recommended)) | 35-40 (Recommended)) | 35-40 (Recommended)) | 40-50 (Recommended)) |
| Ues range | 30-70 | 20-60 | 20-60 | 30-70 | |
| Inlet Temp.(℃) | Standard | 40 | 40 | 40 | 40 |
| Use range | 15-80 | 15-80 | 15-80 | 15-80 | |
| Outlet Temp. | Standard 80(Max.85) | Standard 80(Max.85) | Standard 80(Max.85) | Standard 80(Max.85) | |
| Power | 3Φ 380V 60Hz | 1Φ 220V 50Hz/60Hz | 3Φ 380V 50Hz/60Hz | 3Φ 380V 50Hz/60Hz | |
| Refrigerant | R-410a[3,500g] R-134a[1,900g] | R-410a[2,200g] R-134a[1,400g] | R-410a[2,540g] R-134a[1,800g] | R-410a[3,500g] R-134a[1,900g] | |
| Compressor | Type | Scroll/Twin Rotary | Twin Rotary | Twin Rotary | Scroll/Twin Rotary |
| Method | Scroll/Twin Rotary | Twin Rotary | Twin Rotary | Scroll/Twin Rotary | |
| Control of capacity | Inverter/Inverter | Inverter | Inverter | Inverter/Inverter | |
| Dimension (L x W x H) | Outdoor unit | 565 x 1,286 x 1,440 [Base included] | 320 x 900 x 1,360 | 320 x 900 x 1,360 | 565 x 1,286 x 1,440 [Base included] |
| Indoor unit | 440 x 818 x 1,110 [Base included] | 330 x 570 x 1,030 | 330 x 570 x 1,030 | 440 x 818 x 1,110 [Base included] | |
| Weight(Kg) | Outdoor unit 125 / Indoor unit 99 | Outdoor unit 86 / Indoor unit 78 | Outdoor unit 95 / Indoor unit 93 | Outdoor unit 125 / Indoor unit 99 | |
| Earth leakage breaker(3Φ) | 30A | ||||
| Indoor Unit | Heat exchanger(Type) | Plate type(R410a:R134a) | |||
| Refrigerant : Refrigerant | |||||
| Heat exchanger(Type) | Plate type(R410a:hot water) | ||||
| Refrigerant : Hot water | Hot water pressure drop : 4[2~9] kPa | ||||
| Refigerant Piping (R410A) | Liquid pipe(mm) | 9.52 | |||
| Gas pipe(mm) | 15.88 | ||||
| Indoor unit Water piping | Inlet(mm) | 25A | |||
| Outlet(mm) | |||||
| Indoor temperature use range(℃) | 5~40 | ||||
| Outdoor temperature use range(℃) | Standard -20~40 | ||||
※Period
1.Standard of Heating Capacity : Outside condition 7℃ DB / 6WB, Indoor condition 20DB /15WB, Recovery temperature 40℃, Flow rate 23LPM, length of pipe 5m, Head 0m/ability,
Power consumption and etc can be changed without notice depending on the developed product.
2. Standard of Heating : Outdoor temperature 7℃, it can be changed depending on the temperature change.
3. Use the Hydro unit and outdoor IEC 60245-4, IE666, H07RN-F power line and higher.
4. Hydroelectric and outdoor unit is the standard installation length to the panel board.
PURPOSE OF USE
Bathing Facilities/Accommodation Facilities
- Steam baths
- Saunas
- Steam rooms
- Swimming pool
- Hotels
- Motels
- Dormitories
- Training centers
- Nursing homes
- Pension
- Condo
- Studio apartment
Agricultural Facilities/Religious Facilities
- Vinyl greenhouse
- Floricultural pot
- Raising seedlings
- Pig farming, Fish farm
- Churches
- Cathedrals
- Temples
- Prayer house
For Public Facilities
- Hospitals
- Schools
- Shops
- Factories
- Office building
