DAEHO COOLER

DAEHO COOLER

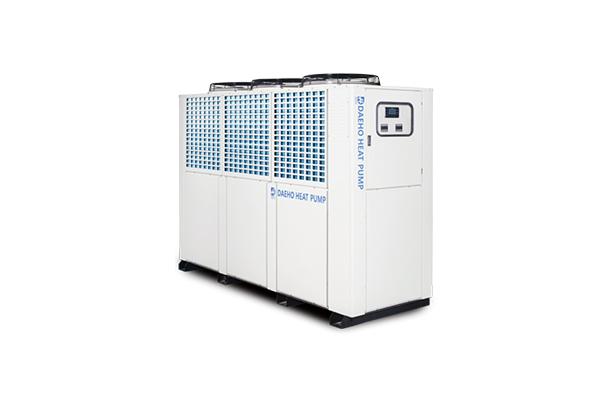

Air-source Heat Pump

Model

Series

Heat Pump


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

HEAT PUMP

High-efficiency system capable of air conditioning and heating with one piece of equipment by releasing indoor heat into the atmosphere without a separate cooling tower and it is heated using the heat absorbed from the atmosphere when heating.

Produce stable high-temperature water by binary cycle method, Extending system life by built-in safety devices, Saving money on fuel cost




CHARACTERISTIC

- It operates to normal without auxiliary heat source in cold weather, 20 degrees below zero

- The heat pump life is expended sharply with built-un perfect safety devices

- It is composed of special material(inside) and paint(outside) not to rust

- By applying anti-vibration device and noise control device, it can be use it conveniently

-It can be check and control all operation conditions with monitor at counter, main room or convenient place




BINARY CYCLE




Existing Binary Heat pump

The refrigeration standard cycle plays a refrigeration role by repeating and circulating with 4 processes, [compression process → condensation process → expansion process → evaporation process] In case of use it in 4seasons, it’s occurred big problem on evapration process because of calorie deficiency for outdoor air in winter season. Namely, In cold winter season, the refrigerant inhales to compressor in not to evaporate completely because of calorie deficiency.


Binary Heat Pump(Patent Cycle)

The binary cycle method is using 2 kinds refrigerant which has good absorbing capacity of heat energy R410A and excellent production abliity of high temperature water R-134a.








FLOW DIAGRAM






STANDARD SPECIFICATION

ItemDHB-15DHB-20DHB-30DHS-20DHS-10DH-05HG
PerformanceTypeBinary-CycleFam-house facilitiesGeothermal-Cylce
Heating capacity(Kcal/h)60,00077,000110,00060,00030,00019,800
Heat Storage tank temp.(℃)70-7570-7570-7555-6055-6055-60
Water outlet temp.(℃)75-8075-8075-8060-6560-6560-65
Hot water Flow rate (kg/min)16522033020010058
Cold capacity(Kcal/h)42,00056,00070,00056,00028,00021,500
CompressorTypeScroll
Heating Power Consumption(Kw/h)30405520106.3
Cooling Power Consumption(Kw/h)15202520105.7
Fan motorStandard(Φ x Kw x P x EA)700 x 0.75 x 6 x 2600 x 0.4 x 6 x 3750 x 0.75 x 8 x 3600 x 0.4 x 6 x 3600 x 0.4 x 6 x 2X
CMM400500750500300X
Water pipeIn / Out40A50A65A50A32A25A
DimensionL x W x H (mm)2,070 x 1,000 x
1,775
2,630 x 900 x
1,775
3,230 x 1,100 x
2,055
2,630 x 900 x
1,775
1,770 x 900 x
1,720
605 x 780 x
875
RefrigerantR134A/R410aR134A/R410aR134A/R410aR-407cR-407cR-410a
Control of refrigerant
(expansion valve type)
Electronic
Main Power3PH 4-wire 380V 60Hz
For safetyNegative-phase detection, Over current relay, High & Low pressure switch,
Protection of compressor overheat, Freeze protection, Flow switch

※Period

1. Heating Capacity can be changed depend on area in winter season.

2. Power consumption on heting & cooling is maximum power consumption.

3. Geothermy heating capacity : load / heat source inlet Temp. 40℃/5℃, Cooling capacity : load / heat source inlet Temp. 12℃/25℃




PURPOSE OF USE


Bathing Facilities/Accommodation Facilities

  • Steam baths
  • Saunas
  • Steam rooms
  • Swimming pool
  • Hotels
  • Motels
  • Dormitories
  • Training centers
  • Nursing homes
  • Pension
  • Condo
  • Studio apartment




Agricultural Facilities/Religious Facilities

  • Vinyl greenhouse
  • Floricultural pot
  • Raising seedlings
  • Pig farming, Fish farm
  • Churches
  • Cathedrals
  • Temples
  • Prayer house




For Public Facilities

  • Hospitals
  • Schools
  • Shops
  • Factories
  • Office building
