DAEHO COOLER

DAEHO COOLER

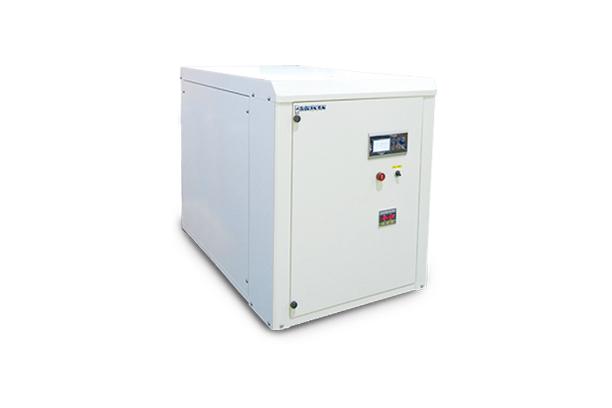

Geothemal Source Heat Pump

Model

Series

Heat Pump


Transaction Process

Please contact Komachine.

Payment

Please contact Komachine.

Delivery

Please contact Komachine.

Shipment

Please contact Komachine.

Origin

Korea (Republic of)


Description

GEOTHEMAL SOURCE

With Using heat energy it has soil, underground water and surface water, it cools by exporting indoor high temperature to underground in summer season. and, it is heating system by absorbing heat from

underground in winter season. Alternative energy facilities capable of operating costs saving for air-conditioning and heating.




CHARACTERISTIC

- Application for expansion & reduction of machinery room which is unnecessary cooling tower, outdoor unit

- Cheap operating cost with ground heat source

- Supply eco-friendly system by using eco-friendly refrigernt(R-410A)

- Patent technology for self-production

- Hot water/Heating/Cooling with one equipment

- Suitable product for installation obligation business according to certificate of renewable energy equipment




Geothemal Source Heat Pump

With one equipment to Hot water / Heating / Cooling and Floor-heating!

It is available to heating, hot-water, cooling and floor heating with ine equipment and has cost saving effect.











FLOW DIAGRAM







STANDARD SPECIFICATION

ItemDH-05HG
PerformanceSystem typeGeothermal-Cycle
Heating capacity(Kw)18
Heating capacity(Kcal/h)15,500
Heat Storage tank temp.(℃)50-60
Water outlet temp.(℃)55-70
Hot water Flow rate
(kg/min)
58
Cold capacity(Kcal/h)14,800
CompressorTypeScroll
Heating Power Consumption(Kw/h)5
Cooling Power Consumption(Kw/h)4
Fan motorStandard
(Φ x Kw x P x EA)
402
Water pipeIn / Out25A
DimensionL x W x H (mm)600 x 800 x 800
RefrigerantR-410a
Control of refrigerant
(expansion valve type)
Electronic
Main Power3PH 4-wire 380V 60Hz
For safetyNegative-phase detection, Over current relay, High & Low pressure switch,
Protection of compressor overheat, Freeze protection, Flow switch

※Period

1. Heating capacity : It can be changed depend on outside condition

2. Standard of cooling capacity : Outdoor temperature 35℃, Outlet Temp. 7℃, Inlet Temp.12℃

3. Standard of heating power consumption : Outdoor temperature 7℃, Inlet Temp. 40℃ Outlet Temp. 45℃ Geothermal heating capacity : Load/Heat source Inlet Temp. 40℃/5℃, Cooling capacity : Load/Heat source Inlet Temp. 12℃/25℃

* All the details can be changed without any notice with the products developed




PURPOSE OF USE



Bathing Facilities/Accommodation Facilities

  • Steam baths
  • Saunas
  • Steam rooms
  • Swimming pool
  • Hotels
  • Motels
  • Dormitories
  • Training centers
  • Nursing homes
  • Pension
  • Condo
  • Studio apartment



Agricultural Facilities/Religious Facilities

  • Vinyl greenhouse
  • Floricultural pot
  • Raising seedlings
  • Pig farming, Fish farm
  • Churches
  • Cathedrals
  • Temples
  • Prayer house



For Public Facilities

  • Hospitals
  • Schools
  • Shops
  • Factories
  • Office building
