A/AM-SERIES
Air Cooled type is that the refrigerant gas heat generated in process of condensation is cooled with air by organization compressor The excellent cooling ability, Superior durability and precise & stable Temperature control improve your productivity
SERIES

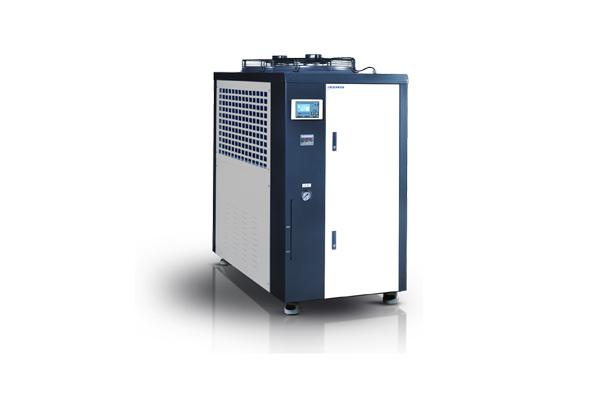

A-SERIES (2A ~ 10A) |
A-SERIES (15A ~ 50A) |
AM SERIES (INCLUDING OUTDOOR UNIT) |
CHARACTERISTIC
- Possivle to check the condition of Chiller through LCD Sceens
- Wide temperature Control option (-15 degree ~ +80 degree)
- After blackout, it comes back automatically
- Option for cold and hot water
- Easily Movable with attached wheels
- Minimize noisy by seperating condenser and indoor system, it prevents degradation of cooling ability caused by increasing the room temperature (AM series)
- Preventing degradation of cooling ability when indoor temperature is above 27 degrees, the environment can be comfortable by separating and installing Cooler outside (AM series)
- For the place of no Ventilation, Less production, and higher heat, AM series is suitable
FLOW DIAGRAM
A Series
Ref. Gas Line
Water Line
- ACompressor
- BOil Separator
- CAircooled condenser
- DReceiver tank
- EFilter drier
- FSight glass
- GSolenoid Valve
- HExpansion valve
- IAccumulator
- JWater tank & Senser
- KEvaporator
- LCity Water Supply
- MWater Return
- NWater Supply
- OWater Gauge
- PBy-pass valve
- QCirculation pump
- RDrain Valve
- SDigital Pressure
AM Series
Ref. Gas Line Water Line
- ACompressor
- BOil Separator
- CAircooled condenser
- DReceiver tank
- EFilter drier
- FSight glass
- GSolenoid Valve
- HExpansion valve
- IAccumulator
- JWater tank & Senser
- KEvaporator
- LCity Water Supply
- MWater Return
- NWater Supply
- OWater Gauge
- PBy-pass valve
- QCirculation pump
- RDrain Valve
- SDigital Pressure
STANDARD SPECIFICATION
A Series
| Item | 2A | 3A | 5A | 7.5A | 10A | 15A | 20A | 30A | 40A | 50A |
|---|---|---|---|---|---|---|---|---|---|---|
| Refrigerator Capacity | 2 | 3 | 5 | 7.5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Port Size (Inlet/Outlet) | 25A(1") | 40A(1-1/2") | 50A(2") | |||||||
| Cooling Medium | Water, D I water, Antifreeze, Distilled water | |||||||||
| Refrigerant | R-22 (R-407C) | |||||||||
| Weight (kg) | 160 | 200 | 250 | 310 | 410 | 580 | 700 | 900 | 1,100 | 1,600 |
| Compressor Output (kW) | 1.5 | 2.25 | 3.75 | 5.5 | 7.5 | 11.25 | 15 | 22.5 | 30 | 37.5 |
| Cooling Capacity (at 20℃,Kcal/h) | 5,600 | 8,400 | 14,000 | 21,000 | 28,000 | 42,000 | 56,000 | 84,000 | 112,000 | 140,000 |
| Circulation Pump Output (Kw) | 0.75 | 1.85 | 3 | |||||||
| Pump Head (M) | 35 | 35 | 28 | |||||||
| Pump Flow Rate (L/min) | 72 | 150 | 300 | |||||||
| Display | Digital Automatic Temperature Control | |||||||||
| Safety Alarm | Low water level, High/Low pressure, Sense gas leaking, Overload, Phase detection, High/Low temperature, Anti freeze, Water flow sensor | |||||||||
| Water Tank (L) | 35 | 45 | 100 | 100 | 135 | 250 | 350 | 600 | 700 | 700 |
| Dimension | 780 x 605 x 1,195" | 850 x 665 x 1,395" | 1,310 x 760 x 1,470" | 1310 x 760 x 1,470" | 1,500 x 805 x 1,570" | 1,770 x 900 x 1,752" | 2,070 x 1,000 x 1,752" | 2,930 x 1,000 x 1,803" | 3,230 x 1,100 x 1,973" | 3,770 x 1,100 x 2,190" |
| Total Power Consumption | 1.85 | 3.3 | 4.9 | 6.8 | 9.5 | 15 | 18 | 27 | 37 | 48 |
| Power (v) | AC 1Φ 220V 50/60Hz AC 3Φ 220/380/440V 50/60Hz | AC 3Φ 220/380/440V 50/60Hz | ||||||||
※ All the details can be changed without any notice with the products developed.
(Option : ±0.1℃ temperature control, Ultralow-temperature Chiller(-80℃), Customized order)
AM Series
| Item | 2AM | 3AM | 5AM | 7.5AM | 10AM | 15AM | 20AM | 30AM | 40AM | 50AM |
|---|---|---|---|---|---|---|---|---|---|---|
| Refrigerator Capacity | 2 | 3 | 5 | 7.5 | 10 | 15 | 20 | 30 | 40 | 50 |
| Port Size (Inlet/Outlet) | 25A(1") | 40A(1-1/2") | 50A(2") | |||||||
| Cooling Medium | Water, D I water, Antifreeze, Distilled water | |||||||||
| Refrigerant | R-22 (R-407C) | |||||||||
| Weight(kg) | 110 | 150 | 250 | 290 | 430 | 530 | 680 | 830 | 930 | 1,100 |
| Compressor Output (kW) | 1.5 | 2.25 | 3.75 | 5.5 | 7.5 | 11.25 | 15 | 22.5 | 30 | 37.5 |
| Cooling Capacity (at 20℃,Kcal/h) | 5,600 | 8,400 | 14,000 | 21,000 | 28,000 | 42,000 | 56,000 | 84,000 | 112,000 | 140,000 |
| Circulation Pump Output (Kw) | 0.75 | 1.85 | 3 | |||||||
| Pump Head (M) | 35 | 28 | ||||||||
| Pump Flow Rate (L/min) | 72 | 150 | 300 | |||||||
| Display | Digital Automatic Temperature Control | |||||||||
| Safety Alarm | Low water level, High/Low pressure, Sense gas leaking, Overload. Phase detection, High/Low temperature, Anti freeze, Water flow sensor | |||||||||
| Water Tank (L) | 55 | 55 | 110 | 140 | 170 | 250 | 300 | 450 | 550 | 650 |
| Indoor dimension (L x W x H) | 780 x 605 x 1,085 | 780 x 605 x 1,085 | 850 x 665 x 1,275 | 1,310 x 760 x 1,350 | 1,310 x 760 x 1,350 | 1,500 x 800 x 1,450 | 1,745 x 900 x 1,550 | 1,980 x 950 x 1,775 | 1,980 x 985 x 1,775 | 1,981 x 950 x 1,773 |
| Outdoor dimension (L x W x H) | 700 x 470 x 520 | 700 x 470 x 990 | 925 x 855 x 1,023 | 1,346 x 800 x 712 | 1,576 x 900 x 810 | 1,576 x 943 x 910 | 2,226 x 904 x 910 | 2,706 x 1,116 x 915 | 3,297 x 1,082 x 915 | 3,297 x 1,082 x 915 |
| Total Power Consumption | 1.85 | 3.3 | 4.9 | 6.8 | 9.5 | 15 | 18 | 27 | 37 | 48 |
| Power (v) | AC 3Φ 220/380/440V 50/60Hz | |||||||||
※ All the details can be changed without any notice with the products developed.
(Option : ±0.1℃ temperature control, Ultralow-temperature Chiller(-80℃), Customized order)
Purpose of Use
Processing machinery, Wire cutting, Injection/Extrude molding machine, Vaccume / Rubber molding machine, Roller / Mixer equipment, Laser machinery, Plating Equipment/Grinder, Printing machinery, Food processing machinery, Medical instrument, High frequency/Ultrasonic equipment, Custom made solution
