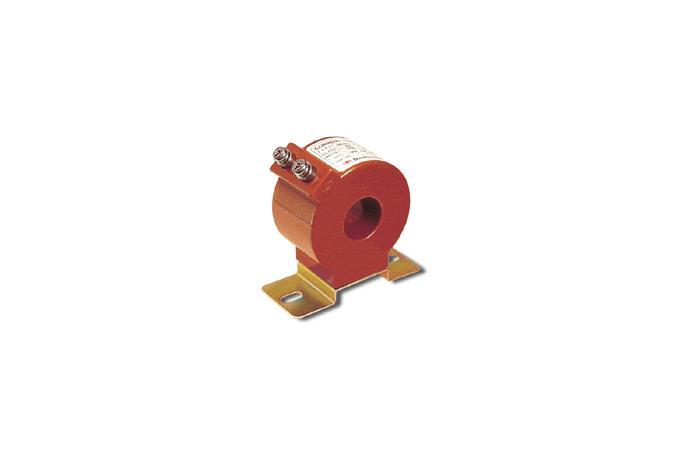

Current Transformer (Window and Ring) (Ring Type)
Model Name
CD-201
Data
Drawing-Dae Boong Electric-Transformers-Current Transformer (Window and Ring)-CD-201, CD-202, CD-202A, CD-203
Manufacturer information
DAE-BOONG ELECTRIC
Electric measuring machine manufacturer, Wattmeter, Power factor indicator, Converter, Transformer, Transducer and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
DAE-BOONG ELECTRIC
Brand
-
SKU
134948
Product Name
Current Transformer (Window and Ring) (Ring Type)
Model Name
CD-201, CD-202, CD-202A, CD-203
Size
-
Weight
-
Product Details
Dimensions
| Model | H | ø L | W | Z | Weight(g) |
| CD-201 | 92 | 25 | 70 | 40 | ≒500 |
| CD-202 | 110 | 40 | 88 | 40 | ≒700 |
| CD-202A | 110 | 40 | 88 | 50 | ≒1000 |
| CD-203 | 125 | 60 | 106 | 40 | ≒800 |
Rating
| Standard | KSC 1706 |
| Max Voltage | 1.15Kv |
| Over Current Factor | 40In/1Sec |
| Frequency | 50~60Hz |
Specification
| Primary | Model | CD-201 | CD-202 | CD-202A | CD-203 | ||||||||||||||||||
| Class | 3 | 1 | 1 | 1 | 1 | ||||||||||||||||||
| Burden | 5VA | 5VA | 15VA | 5VA | 15VA | 40VA | 15VA | 40VA | 5VA | 15VA | 40VA | ||||||||||||
| Sec. | AT | Tur | AT | Tur. | AT | Tur. | AT | Tur. | AT | Tur. | AT | Tur. | AT | Tur. | AT | Tur. | AT | Tur. | AT | Tur. | AT | Tur. | |
| 5 | 5 or 1 | 100 | 20 | 150 | 30 | 200 | 40 | 400 | 80 | 150 | 30 | 225 | 45 | ||||||||||
| 10 | 100 | 10 | 150 | 15 | 200 | 20 | 400 | 40 | 150 | 15 | 230 | 23 | |||||||||||
| 15 | 120 | 8 | 150 | 10 | 240 | 16 | 420 | 28 | 150 | 10 | 225 | 15 | |||||||||||
| 20 | 100 | 5 | 160 | 8 | 240 | 12 | 400 | 20 | 160 | 8 | 240 | 12 | |||||||||||
| 25 | 100 | 4 | 150 | 6 | 200 | 8 | 400 | 16 | 150 | 6 | 225 | 9 | |||||||||||
| 30 | 120 | 4 | 150 | 5 | 240 | 8 | 420 | 14 | 150 | 5 | 240 | 8 | |||||||||||
| 40 | 120 | 3 | 160 | 4 | 240 | 6 | 400 | 10 | 160 | 4 | 240 | 6 | |||||||||||
| 50 | 100 | 2 | 150 | 3 | 200 | 4 | 400 | 8 | 150 | 3 | 250 | 5 | |||||||||||
| 60 | 120 | 2 | 180 | 3 | 240 | 4 | 420 | 7 | 180 | 2 | 240 | 4 | |||||||||||
| 75 | 150 | 2 | 150 | 2 | 225 | 3 | 450 | 6 | 150 | 2 | 225 | 3 | |||||||||||
| 100 | 100 | 1 | 200 | 2 | 200 | 2 | 400 | 4 | 200 | 2 | 300 | 3 | |||||||||||
| 120 | 120 | 1 | 240 | 2 | 240 | 2 | 480 | 4 | 240 | 2 | 240 | 2 | |||||||||||
| 150 | 150 | 1 | 150 | 1 | 300 | 2 | 450 | 3 | 150 | 1 | 300 | 2 | |||||||||||
| 200 | 200 | 1 | 200 | 1 | 200 | 1 | 200 | 1 | 200 | 1 | 400 | 2 | 200 | 1 | 400 | 2 | |||||||
| 240 | 240 | 1 | 240 | 1 | 240 | 1 | 240 | 1 | 240 | 1 | 480 | 2 | 240 | 1 | 240 | 1 | |||||||
| 250 | 250 | 1 | 250 | 1 | 250 | 1 | 250 | 1 | 250 | 1 | 500 | 2 | 250 | 1 | 250 | 1 | |||||||
| 300 | 300 | 1 | 300 | 1 | 300 | 1 | 300 | 1 | 300 | 1 | 600 | 2 | 300 | 1 | 300 | 1 | |||||||
| 400 | 400 | 1 | 400 | 1 | 400 | 1 | 400 | 1 | 400 | 1 | 400 | 1 | |||||||||||
| 500 | 500 | 1 | 500 | 1 | 500 | 1 | 500 | 1 | 500 | 1 | 500 | 1 | |||||||||||
| 600 | 600 | 1 | 600 | 1 | 600 | 1 | 600 | 1 | 600 | 1 | 600 | 1 | |||||||||||
| 750 | 750 | 1 | 750 | 1 | 750 | 1 | 750 | 1 | 750 | 1 | 750 | 1 | |||||||||||
| 800 | 800 | 1 | 800 | 1 | 800 | 1 | 800 | 1 | 800 | 1 | 800 | 1 | |||||||||||
| 1000 | 1000 | 1 | 1000 | 1 | 1000 | 1 | |||||||||||||||||
| 1200 | 1200 | 1 | 1200 | 1 | 1200 | 1 | |||||||||||||||||
| 1500 | 1500 | 1 | 1500 | 1 | 1500 | 1 | |||||||||||||||||
