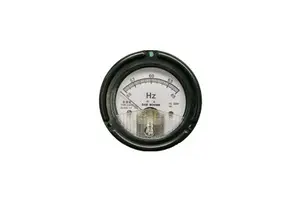

Overview

The types of operating of these meters are the transducer type.

And this meter is used for measuring the frequency of generator.

Model

Connection

Features

ㆍUsable voltage range.1
   10V rating : 80V to 120V, 220V rating : 160V to 240V

ㆍThr standard scale range is the 45Hz to 55Hz, and/or 55Hz 65Hz.

ㆍFor a rating voltage higher than 220V, use external potential transfomer with a 110V instrument.

Specification

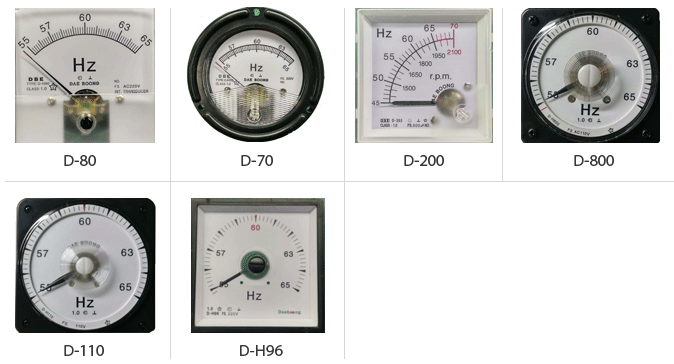

Shape of case	Type of Pointer	Type	Rated Volt.	Oper Princ.	Accur (%)	Burden (VA)
Rectangular (80x80mm)	Transducer type	D-80	110,220V		±1.0	2
Rectangular (100x83mm)		D-100
Rectangular (80x80mm)Wide Angle		D-800
Rectangular (110x110mm) Wide Angle		D-110
Rectangular (70ø)		D-70
Rectangular (72x72mm)		D-200
Rectangular (98x98mm)		D-300
