Chung Ah Filter

Chung Ah Filter

Pleated Filter

Model

Series

Pleated Filter


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.


Description

Description

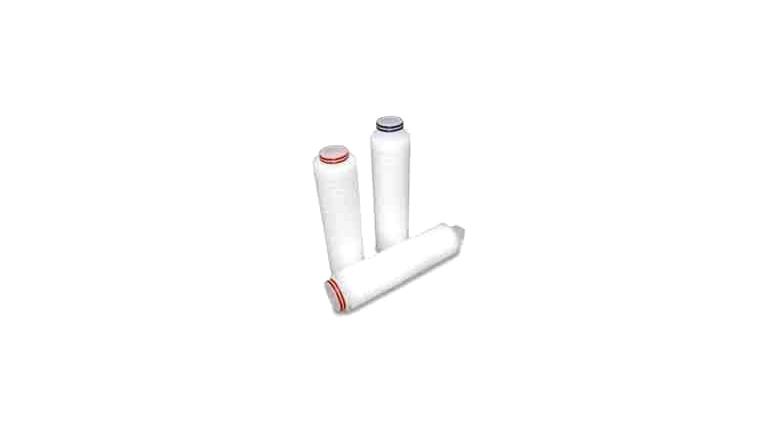

MC Series Pleated Filter is nominal grade filter made from 100% polypropylene. High porosity and grade density media configuration offer high flowrate and throughput. MC Filter is available in a wide range of pore sizes from 0.1 to 100㎛ to meet the customer’s requirements of various specific applications. Additionally through our own technology for media control, customized product can be developed. All polypropylene construction provides excellent chemical resistance and thermal welding free of adhesives minimize extractables. All materials and components comply with the requirements of FDA CFR, title 21 for food contact.



Features

- Superior dirt holding capacity with high flowrate
- Various micro-rating from 0.1 ~ 100 ㎛
- Broad chemical compatibility
- All materials are FDA 21 CFR compliant materials for Food and Beverage
- Manufactured in cleanroom environment



Applications

- Electronics : Display (TFT-LCD/OLED panel/Glass substrate), Fine Chemicals, Wet-etch, Stripper, CDA, Air Vent etc.
- General Industry : DI Water, Acid, Base, Solvent, Paint, Ink, Air Vent etc.
- Food & Beverage : Bottled water, Tea, Edible oil, Beer, Soft Drink, Air Vent
- Pharmaceutical : Solvent, Pre-filtration of drug



Specification

- Micron Rating : 0.1 / 0.2 / 0.5 / 1.0 / 2.5 / 5.0 / 10 / 20 / 50 / 100 ㎛
- Materials
  . Media : Polypropylene
  . Support : Polypropylene
  . Core/Cage/End-cap : Polypropylene
  . O-Ring : EPDM, Silicone, Fluorocarbon, PTFE Encapsulated Fluorocarbon
- Max. differential pressure : 75psid at 25℃ / 25psid at 80℃
- Dimensions
  . Length : 250 / 500 / 750 / 1000 mm
  . Out-diameter : 70mm



Water Flow rates per 10inch cartridge

Chung Ah Filter  MC Series
