Chung Ah Filter

Chung Ah Filter

Membrane Filter

Model

Series

Membrane Filter


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.


Description

Description

PSA Membrane Filter Cartridge consist of Hydrophilic asymmetric polyethersulfone membrane and polypropylene support components. PSA Filter offers high flowrate and throughputs with low pressure drop. PSA Filter is proper for high purity water applications and applicable to the various fields by excellent removal efficiency of the particle. Thermal welding without any adhesives minimize extractables. All materials and components comply with the requirements of FDA CFR, title 21 for food contact.



Features

- Highly competitive, self-developed, patented Polyethersulfone membrane

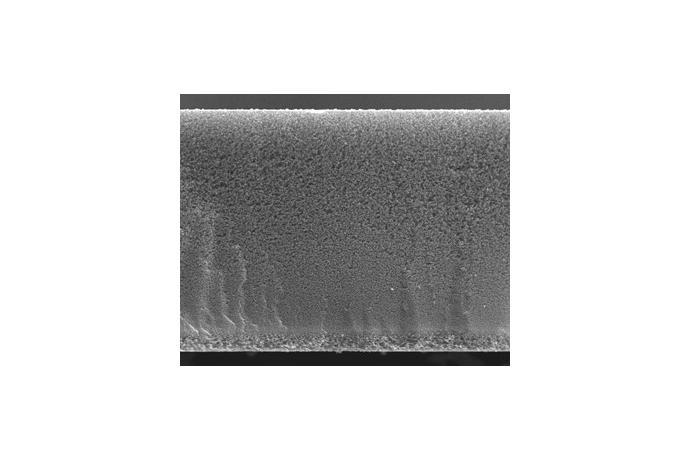

- Asymmetric structure : high flowrate and throughput
- Inherently hydrophilic : no pre-wetting needed
- 100% Integrity Testable
- Manufactured in cleanroom environment



Applications

- Electronics : Display (TFT-LCD/OLED panel/Glass substrate), Fine Chemicals
- Food & Beverage : Bottled Water, Beer, Wine, Syrup, Beverage etc.
- General Industry : DI Water, Process water, Inks, Alcohol etc.
- Pharmaceutical : LVP, SVP, Solvent, Final Filtration of drug, WFI



Specification

- Micron Rating : 0.05 / 0.1 / 0.2 / 0.45 / 0.6 / 0.8 / 1.2 ㎛
- Filtration area : 7,500cm2
- Materials
  . Membrane : Hydrophilic Asymmetric Polyethersulfone
  . Support : Polypropylene
  . Core/Cage/End-cap : Polypropylene
  . O-Ring : EPDM, Silicone, Fluorocarbon, PTFE Encapsulated Fluorocarbon
- Max. differential pressure : 75psid at 25℃
- Dimensions
  . Length : 250 / 500 / 750 / 1000 mm
  . Out-diameter : 70mm



Water Flow rates per 10inch cartridge

Chung Ah Filter  PSA Series
