PRINTING SPECIFICATION

• METHOD : Direct Thermal
• SPEED : 80mm/sec
• WIDTH : 48mm(384 Dots/Line)
• RESOLUTION : 203 DPI

PAPER SPECIFICATION

• TYPE : Thermal Receipt, Linerless(Optional)
• WIDTH : 58mm
• THICKNESS : 0.06~0.09 mm
• ROLL DIAMETER : Max. Ø 48mm
• ROLL CORE INNER DIAMETER : 12.5mm ± 0.5mm

INTERFACE

• STANDARD : Serial(RS-232C), USB
• OPTION : Bluetooth Smart Ready(Bluetooth 4.2+BLE), Wi-Fi(802.11 a/b/g/n)

Key Feature

- Receipt Printer

- Durable and robust with rugged design

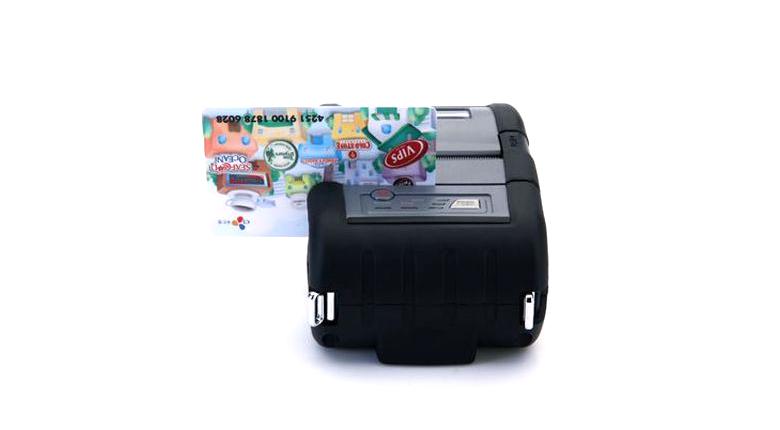

- Magnetic stripe reader & smart card reader (Option)

- Standard interface Serial(RS-232C), USB and optional Bluetooth or Wi-Fi(802.11b/g/n) available.

- Prints at 80mm per second

- Fast AC charger and long life battery : 2.5Hrs charging time, 74.7Hrs stand-by

- Optional accessories : Protection case, shoulder strap, cradle

- Various O/S drivers
