PRINTING SPECIFICATION

• METHOD : Thermal Transfer and Direct Thermal
• SPEED :
∙LK-B10 : 102 mm/sec
∙LK-B12 : 127 mm/sec
• WIDTH : 104 mm (4.1")
• PRINT LENGTH : 630 mm (24.8")
• RESOLUTION : 203 DPI (8 dots/mm)

PAPER SPECIFICATION

[ PAPER ]
• TYPE : Label, Tag, Continuous, Fanfold
• WIDTH : 18 ~118 mm (0.7”~ 4.64")
• THICKNESS : 0.06 ~ 0.20 mm
• ROLL DIAMETER : Ø38.1(1.5”)~ Ø200mm(7.8”)
• ROLL CORE INNER DIAMETER : Ø25.4(1”)~Ø127mm(5.0”)

[ RIBBON ]
• WIDTH : 33~110 mm (1.3 ~ 4.3")
• LENGTH : 360M, Ø67 mm (2.63")

INTERFACE

LK-B10

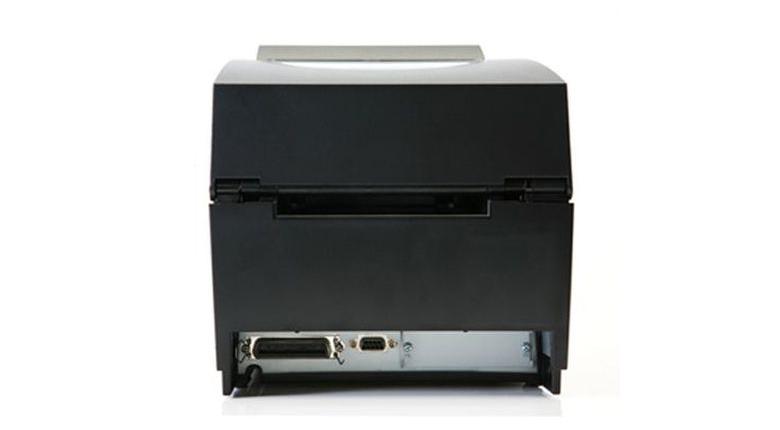

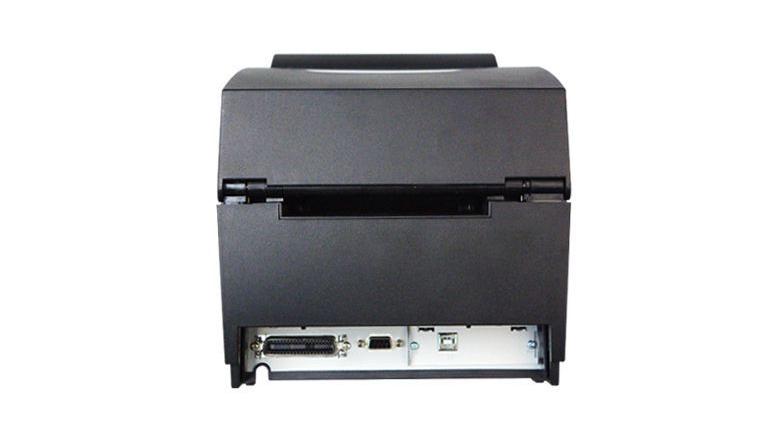

• STANDARD : Serial(RS-232C), Parallel(IEEE-1284)
• OPTION : USB, Ethernet

LK-B12

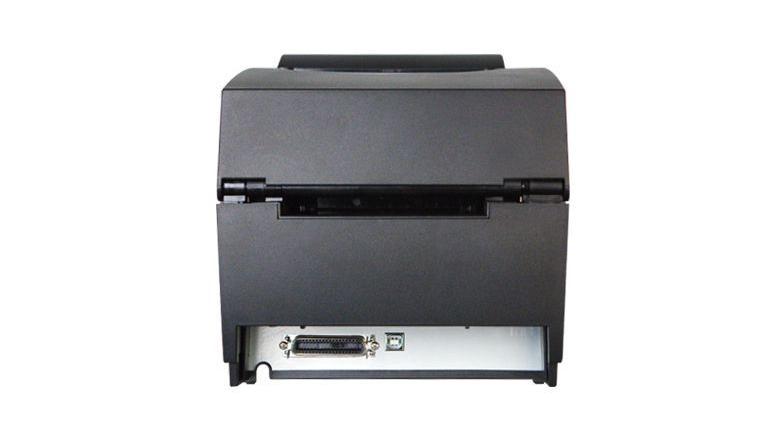

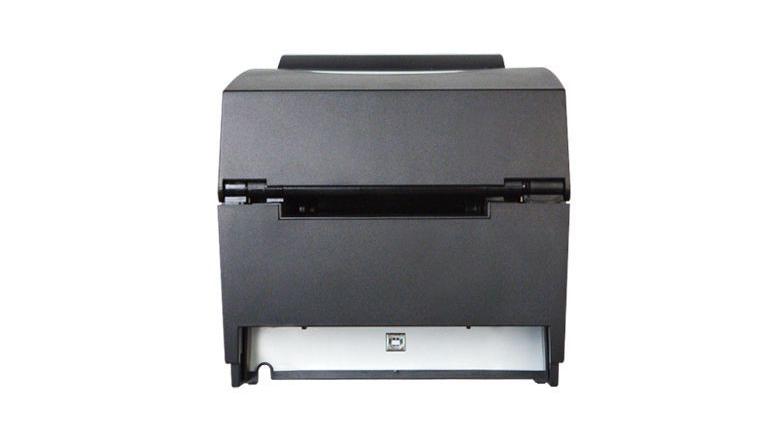

• STANDARD : USB
• OPTION : Parallel(IEEE-1284)

Key Feature

- Thermal transfer Direct thermal printing

- Stable and reliable label printing

- High capacity memory

- Large capacity of roll(200mm OD) with external media holder

- Less ribbon replacement with 360M length (Wax, Wax/Resin, Resin)

- Paper width adjustable from 18mm to 118mm​

- Selectable optional auto cutter or peeler(LK-B10)
