PRINTING SPECIFICATION

• METHOD : Direct Thermal
• SPEED : 127mm/sec
• WIDTH : 48mm(384 Dots/Line)
• RESOLUTION : 203 DPI

PAPER SPECIFICATION

• TYPE : Thermal receipt / Label
• WIDTH : 12.7~58mm
• ROLL DIAMETER : Max. Ø 56mm
• ROLL CORE INNER DIAMETER : 12.5mm ± 0.5mm

INTERFACE

• STANDARD : Serial(RS-232C), USB
• OPTION : Bluetooth Smart Ready(Bluetooth 4.2+BLE), Wi-Fi(802.11 a/b/g/n)

Key Feature

- Receipt/Label Printer

- Compact and rugged design

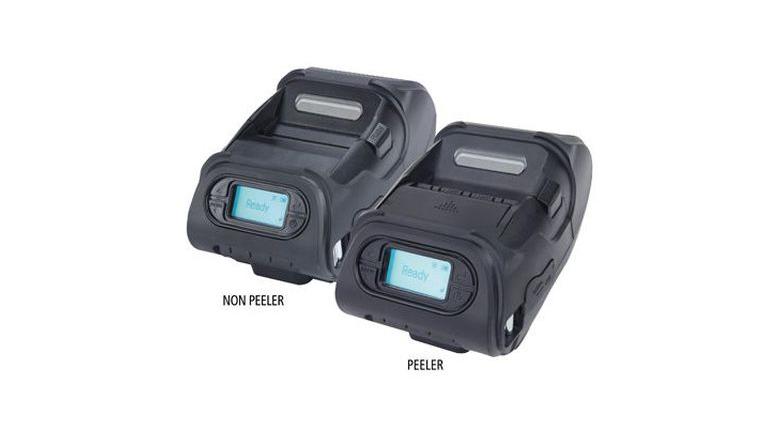

- Peel-off function(Option)

- IP42 certified : protection against dust and water

- Large capacity of paper roll up to 56mm(OD)

- Adjustable paper width from 12.7 to 58mm

- Flexible connectivity including Serial(RS-232C), USB 2.0, Bluetooth Class 2 v2.0 or Wi-Fi(802.11 a/b/g)

- Prints at 100mm per second

- Fast AC charger and long life battery

- Memory : SDRAM 8 MB, Flash 16MB​
