PRINTING SPECIFICATION

• METHOD : Direct Thermal
• SPEED : Max. 127 mm/sec
• WIDTH : 104 mm (4.1)
• PRINT LENGTH : 1,000 mm (39.3)
• RESOLUTION : 203 DPI (8 dots/mm)

PAPER SPECIFICATION

[ PAPER ]
• TYPE : Label roll, Fanfold
• WIDTH : 25 ~ 114 mm (0.9 ~ 4.48)

INTERFACE

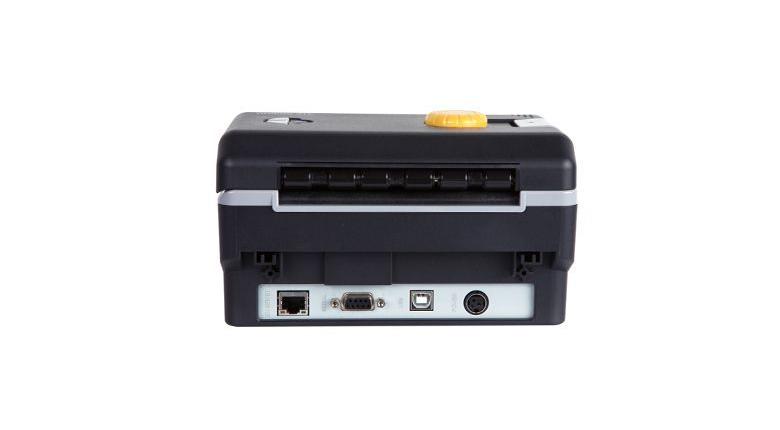

• STANDARD : USB + Serial + Ethernet
• OPTION : Wi-Fi, Bluetooth

OPTION

External Paper Supply, Auto Cutter

Key Feature

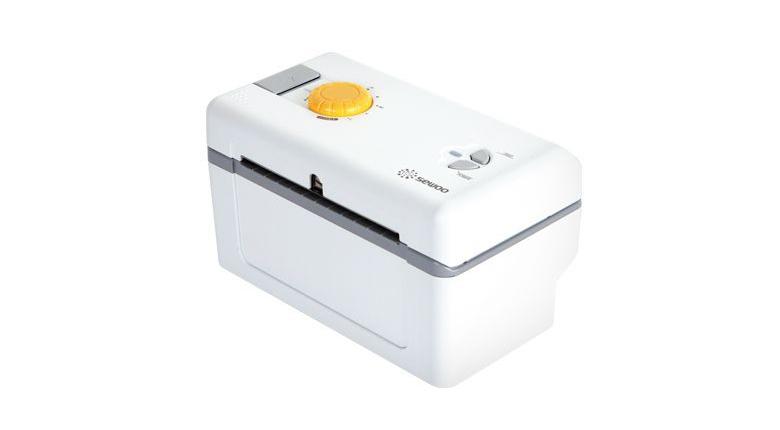

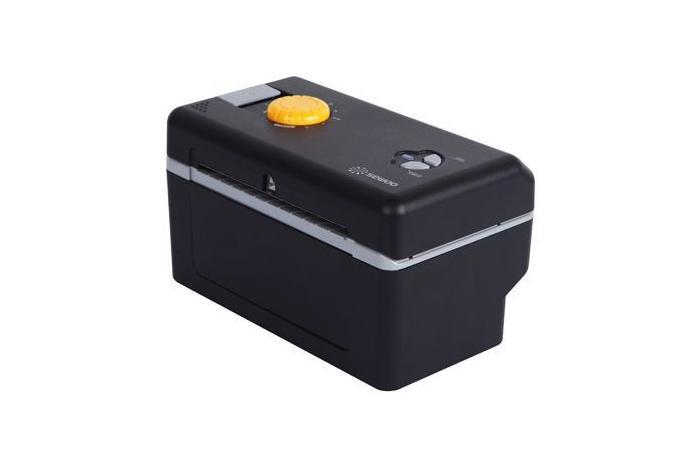

- Direct Thermal Desktop Label Printer

- Rapid graphic printing at 127mm/sec

- Flexible handling of various types of media

 - Thermal Fanfold Label

 - Thermal Roll Label

- Jog Dial which user can adjust printing density without access to a computer.

- Enhanced user convenience with Auto-Cutter(Optional)

Function

Application
