PRINTING SPECIFICATION

• METHOD : Direct Thermal
• SPEED : 300mm/sec
• WIDTH : 72mm(512 Dots/Line)
• RESOLUTION : 180 DPI
• DIRECTION : Unidirectional with Friction Feed

PAPER SPECIFICATION

• TYPE : Thermal Receipt Paper
• WIDTH : 50 mm ~ 82.5 mm
• THICKNESS : 0.06 ~ 0.09 mm
• ROLL DIAMETER : Max. Ø 80.0 mm
• ROLL CORE INNER DIAMETER : 12.5 mm ± 0.5 mm

INTERFACE

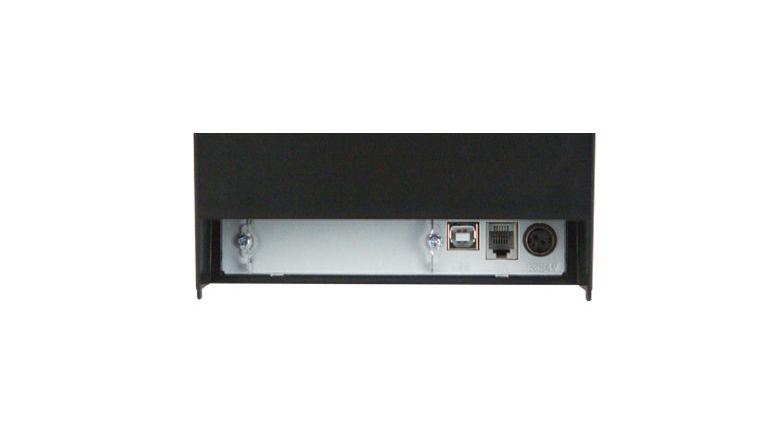

• STANDARD : USB

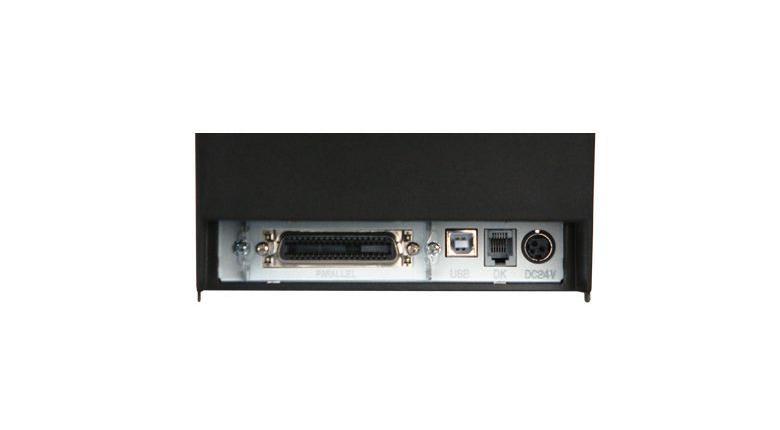

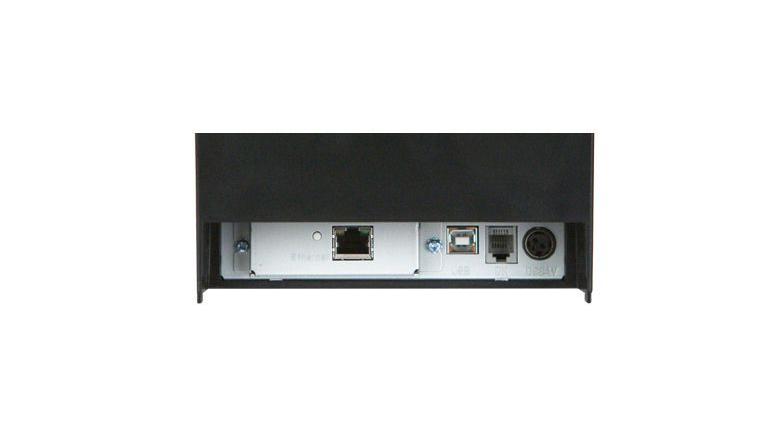

• OPTION : Serial(RS-232C), Parallel(IEEE1284), Ethernet, Wi-Fi(802.11 a/b/g/n), Bluetooth(iOS)

Key Feature

- Energy Star qualified for power efficiency

- High speed printing : 300mm/sec

- Paper width adjustable : 50~82.5mm

- ESC/POS command compatible

- Supports various drivers

- ASB(Auto Status Back) Function

- Wall mount installation available
