PRINTING SPECIFICATION

• METHOD : Direct Thermal
• SPEED : Max.220mm/sec
• WIDTH : 72mm
• RESOLUTION : 180 DPI / 203 DPI(Optional)
• DIRECTION : Unidirectional with Friction Feed

PAPER SPECIFICATION

• TYPE : Thermal Receipt Paper/Linerless(Optional)
• WIDTH : 50 mm ~ 82.5 mm
• THICKNESS : 0.06 ~ 0.09 mm
• ROLL DIAMETER : Max. Ø 80.0 mm
• ROLL CORE INNER DIAMETER : 12.5 mm ± 0.5 mm

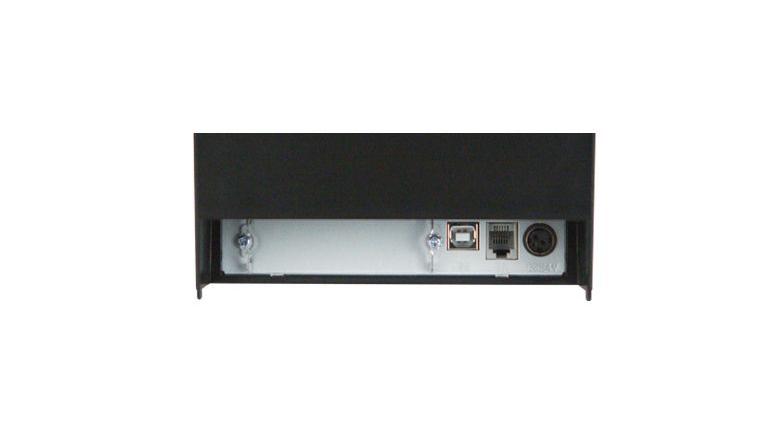

INTERFACE

• STANDARD : USB

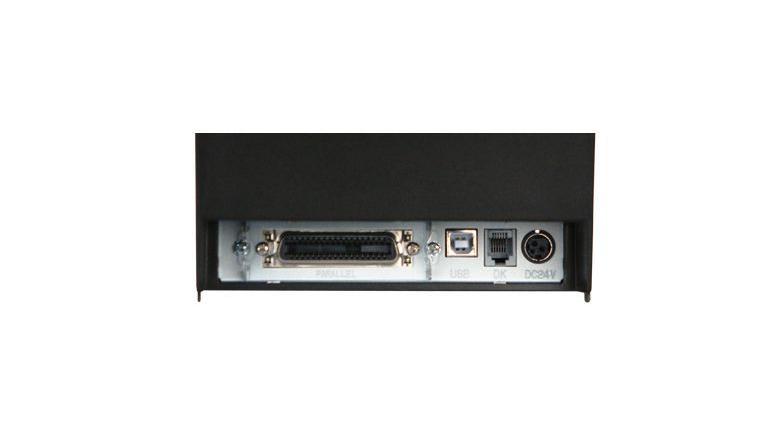

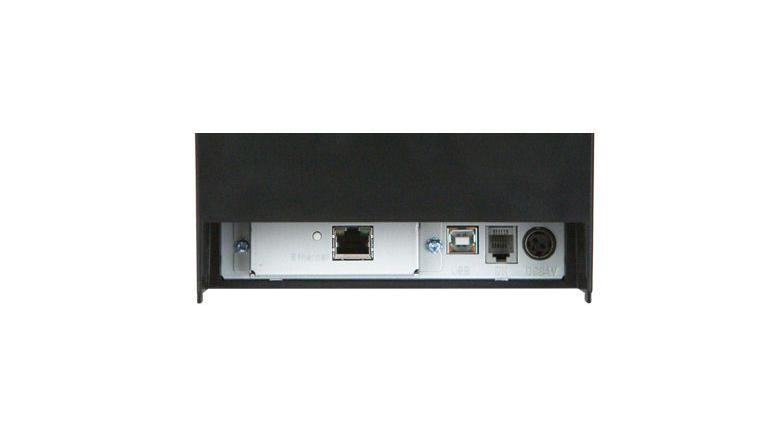

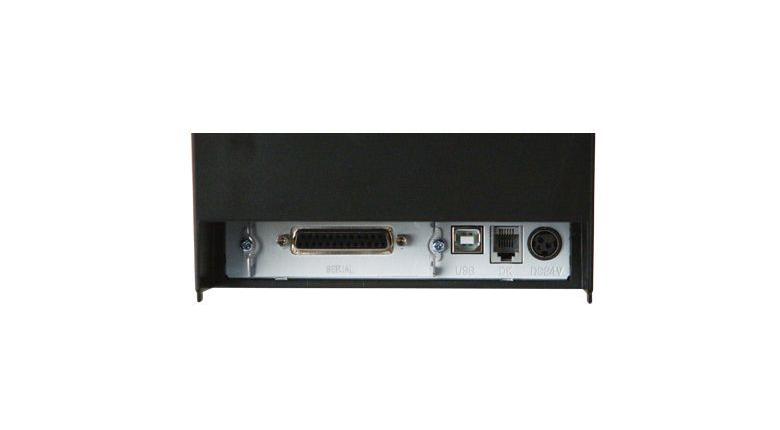

• OPTION : Serial(RS-232C), Parallel(IEEE1284), Ethernet, Wi-Fi(802.11b), Bluetooth(iOS)

Key Feature

- Energy Star qualified for power efficiency

- Paper width adjustable : 50~82.5mm

- ESC/POS command compatible

- Supports various drivers
