PRINTING SPECIFICATION

• METHOD : Direct Thermal
• SPEED : 200mm/sec
• WIDTH : 54mm(432 Dots/Line)
• RESOLUTION : 203 DPI
• DIRECTION : Unidirectional with Friction Feed

PAPER SPECIFICATION

• TYPE: Thermal Receipt Paper
• WIDTH : 59 mm
• THICKNESS : 0.06 ~ 0.09 mm
• ROLL DIAMETER : Max. Ø 60.0 mm
• ROLL CORE INNER DIAMETER : 12.5 mm ± 0.5 mm

INTERFACE

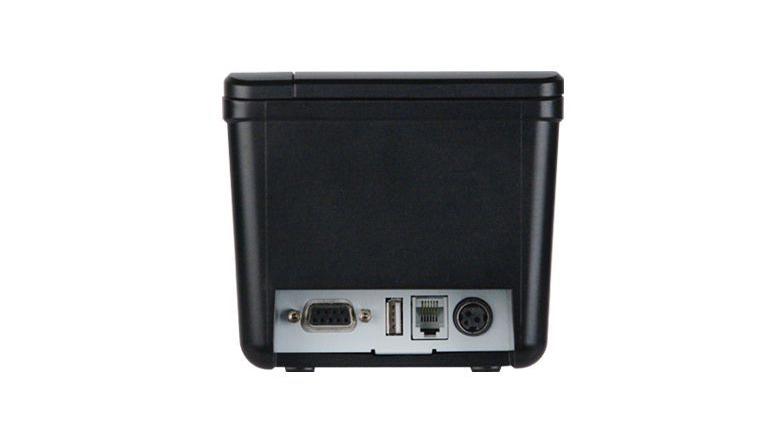

• STANDARD : USB(A type)+Serial(RS-232C) Built-in

Key Feature

- Prints at 200mm per second

- Compact size Direct Thermal

- Tear bar type / Auto cutter(Optional)

- Emulation : ESC/POS Command compatible

- Dual interface : USB + Serial
