PRINTING SPECIFICATION

• METHOD : Direct Thermal
• SPEED : 220mm/sec
• WIDTH : 72mm(512 Dots/Line)
• RESOLUTION : 180 DPI
• DIRECTION : Unidirectional with Friction Feed

PAPER SPECIFICATION

• TYPE: Thermal Receipt Paper
• WIDTH : 80 mm
• THICKNESS : 0.06 ~ 0.09 mm
• ROLL DIAMETER : Max. Ø 83.0 mm
• ROLL CORE INNER DIAMETER : 12.5 mm ± 0.5 mm

INTERFACE

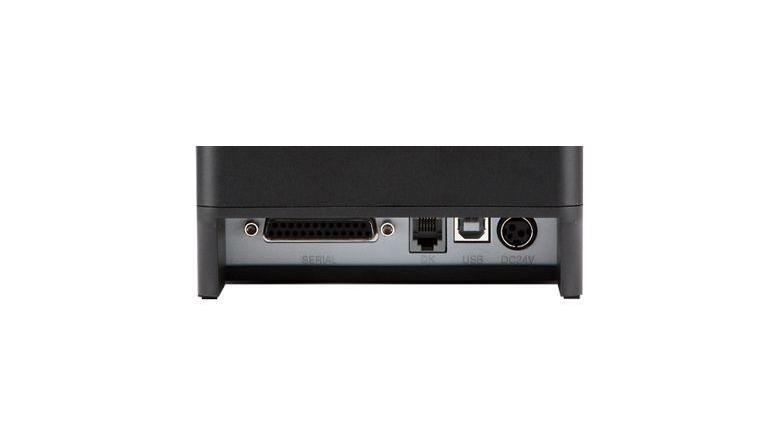

• STANDARD : USB(B type)+Serial(RS-232C)
• OPTION :

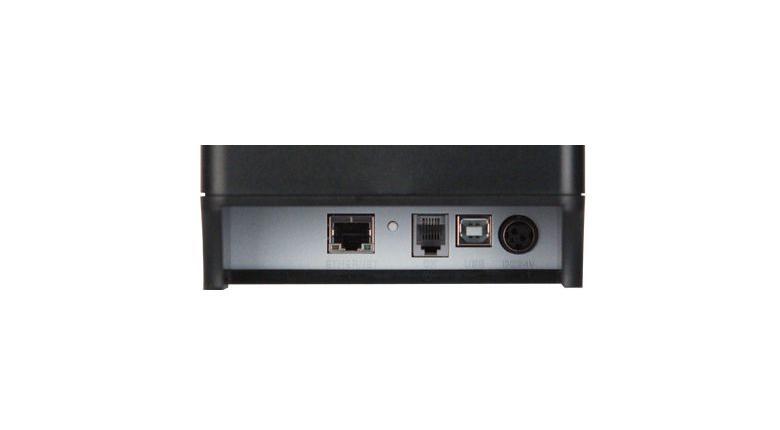

* USB(B type)+ Ethernet
* USB(B type)+ Serial(RS-232C)+Wi-Fi(802.11 a/b/g/n) or Bluetooth(iOS)

Key Feature

- Energy Star qualified for power efficiency

- Compact size

- Top & Front exit available

- Easy Replacement of Components (Tool-less)

- ESC/POS command compatible

- Jam free design -Wall mount installation available
