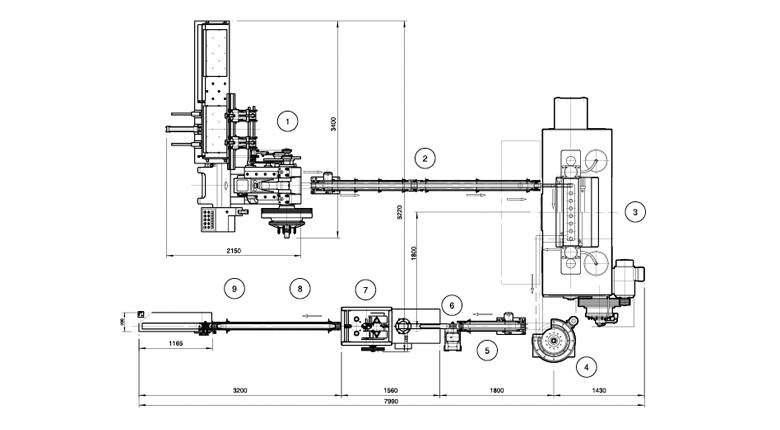

This is an automatic line to produce aerosol cone & dome and its production range is 200D-211D.
The production capacity is maximum 220 cones per minute.
SPECIFICATIONS
|
AUTO STRIP FEED PRESS |
|
|
PRESS CAPACITY |
40 FT |
|
DIE HEIGHT |
250 MM |
|
DIE HEIGHT ADJUST |
25 MM |
|
SLIDE STROKE LENGTH |
110 MM |
|
SLIDE AREA |
200 X 200 MM |
|
BOLSTER AREA |
540 X 400 MM |
|
STROKE PER MIN. |
MAX. 90 SPM |
|
HORSE POWER REQUIRED |
3.75 KW |
|
HYD. UNIT MOTOR |
0.75 KW |
|
SCRAP EJECTOR MOTOR |
0.2 KW |
|
COMPRESSED AIR |
5 KG/CM2 |
|
FLOOR SPACE |
W2300 X L4300 MM |
|
HEIGHT OVER ALL |
1850 MM |
|
NET WEIGHT |
3500 KG |
|
|
|
|
AUTO TRANSFER PRESS |
|
|
PRESS CAPACITY |
75 FT |
|
DIE HEIGHT |
400 MM |
|
DIE HEIGHT ADJUST |
5 MM |
|
SLIDE STROKE LENGTH |
130 MM |
|
TABLE HEIGHT FROM FLOW LINE |
1270 MM |
|
SHELL FEEDING HEIGHT |
1900 MM |
|
NUMBER OF STATIONS |
6 STATIONS, 8 STATION |
|
TRANSFER STROKE |
120 MM, 95 MM |
|
STROKE PER MINUTE |
MAX. 90 SPM |
|
HORSE POWER REQUIRED |
11 KW |
|
OIL PUMP MOTOR |
400 W |
|
LUBRICANT VOLUME |
5.4 L/MIN |
|
FLOOR SPACE |
W2620 X D1100 MM |
|
HEIGHT OVER ALL |
2750 MM |
|
NET WEIGHT |
13000 KG |
|
|
|
|
AUTO LINER & DRYER |
|
|
CAPACITY PER MINUTE |
MAX. 90 CPM |
|
RANGE OF CAN DIA |
200-211 DIA |
|
HORSE POWER REQUIRED |
2.2 KW |
|
COMPOUND DRUM |
1 SET |
|
DRYER TEMPRATURE CONTROL TYPE |
BY THERMISTOR |
|
ELECTRIC HEATER |
15 KW |
|
FLOOR SPACE |
1200 X 2100 MM |
|
HEIGHT OVER ALL |
2410 MM |
|
BLOWER MOTOR |
0.7 KW |
|
DISCHARGE CONVEYOR MOTOR |
0.2 KW |
|
NET HEIGHT |
2000 KG |
FEATURES
* COMPETITIVE PRICE AND GOOD QUALITY
* VARIOUS SIZES : SIZES ARE BETWEEN 200D AND 211D WITH EASY CHANGABLE DIE SET MOLD.
* TRANSPARENT OIL DISTRIBUTOR SYSTEM : EASY TO CHECK OIL RUNNING AND SHORT OF OIL.
* HIGH TECH FINGER SENSOR : MACHINE WILL STOP WHEN PRODUCT DOES NOT RUN SMOOTHLY
* HIGH RIGID FRAME : RATIONALLY DESIGNED FRAME KEEPS SUFFICIENT STRENGTH AND MAINTAINS ACCURATE PRECISION FOR DYNAMIC LOAD.
* INVERTOR IS AVAILABLE FOR VARIABLE RUNNING SPEED
* PLC CONTROL
