제품 상세 정보
PERFORMANCE GRAPH
GENERAL SPECIFICATION
| General Specification | ||
|---|---|---|

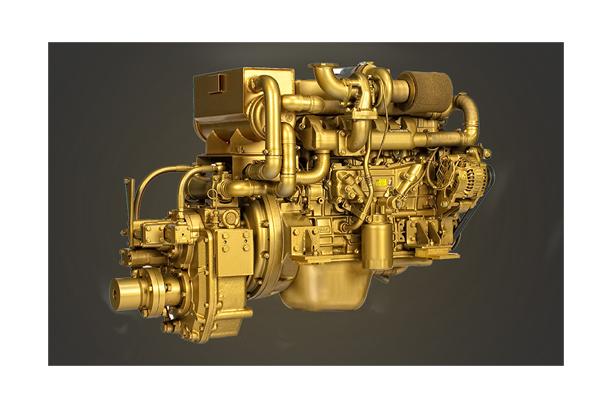

| Engine model | G4HD120 | |
| Type | 4 CYCLE TURBOCHARGED | |
| RATED OUTPUT (WITHOUT FAN) | 125 PS / 2400 RPM | |
| MAX TORQUE | 40 kg.m / 1800 RPM | |
| NO. OF CYL & ARRANGEMENT | 4-IN LINE | |
| COMBUSTION CHAMBER TYPE | DIRECT INJECTION | |
| BORE X STROKE | 104 mm x 115 mm | |
| TOTAL PITON DISPLACEMENT | 3,907 cc | |
| COMPRETION RATIO | 16.5:1 | |
| ROTATION | COUNTER-CLOCKWISE ROTATION AS VIEWED FROM FLYWHEEL SIDE | |
| FIRING ORDER | 1-3-4-2 | |
| WEIGHT DRY | 493 Kg(Approx) | |
| DIMENSION | LENGTH | 1293 mm |
| WIDTH | 673 mm | |
| HEIGHT | 908 mm | |
| Gearbox | DMT50A | 1.66~3.46 |
※Weight : Transmission is included
