GENERAL SPECIFICATION

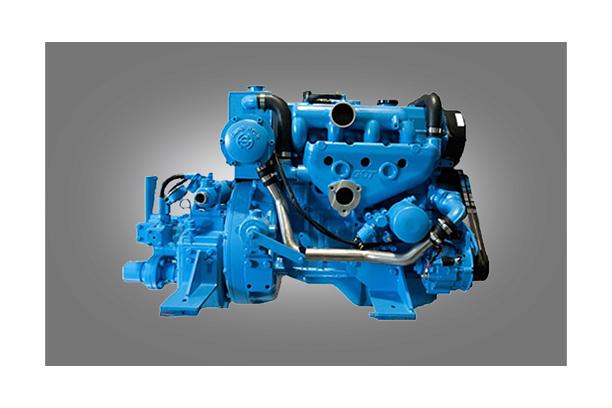

| Engine model | G4HD40/50 | |
|---|---|---|
| Type | 4 CYCLE Natural Aspiration | |
| RATED OUTPUT (WITHOUT FAN) | 40 PS / 2100 RPM | |
| MAX TORQUE | 16.2 kg.m / 2000 RPM | |
| NO. OF CYL & ARRANGEMENT | 4-IN LINE | |
| COMBUSTION CHAMBER TYPE | DIRECT INJECTION | |
| BORE X STROKE | 91.1 mm x 100 mm | |
| TOTAL PITON DISPLACEMENT | 2,607 cc | |
| COMPRETION RATIO | 22:1 | |
| ROTATION | COUNTER-CLOCKWISE ROTATION AS VIEWED FROM FLYWHEEL SIDE | |
| FIRING ORDER | 1-3-4-2 | |
| WEIGHT DRY | 310 Kg(Approx) | |
| DIMENSION | LENGTH | 986 mm |
| WIDTH | 557 mm | |
| HEIGHT | 725 mm | |
| Gearbox | DMT18A | 1.64~3.32 |
