Model Name

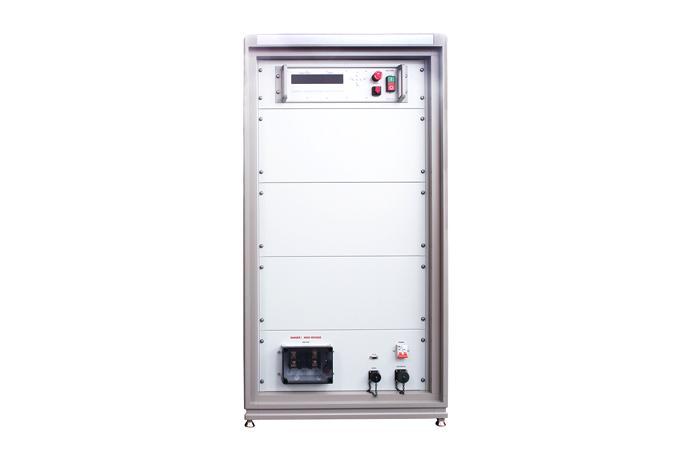

DMC-3020A
Series
MAGNETIZER
Data
-
Manufacturer information
provider logo
Sigma EltecTester, Measuring equipment, Oscillator, Analyzer and Generator manufacturer
Problem with product info?
Update request
Manufacturer
Sigma Eltec
Brand
-
SKU
37889
Product Name
-
Model Name
DMC-3020A
Size
-
Weight
-
Product Details

Specification:

OIL CONDENSER TYPE MODEL: DMC-3020A
 1. 1. INPUT POWER : AC 220V 50/60Hz 37A
 2. OUTPUT CURRENT : MAX 28,000A
 3. CHARGING VOLTAGE : A MODE : DC 200V ~ 3500V

: B MODE : DC 200V ~ 2800V
4. CONDENSER CAPACITY : 2000㎌ OIL CONDENSER
 5. CHARGING TIME : 10 sec max
 6. DIMENSION : 727 (w) * 1400 (H) * 750 (d)
 7. WEIGHT : Approx 300Kg

Sigma Eltec  DMC-3020A

Sigma EltecTester, Measuring equipment, Oscillator, Analyzer and Generator manufacturer
SigmaEltec, established in 1987, has been developing and manufacturing various measurement equipments such as Fo/Ze tester, loudspeaker test oscillator, speaker polarity checker, audio analyzer and loudspeaker durability test system over 20 years and providing such equipment not only to the domestic speaker manufacturers but also to the overseas companies in China, Japan, India, and Philippines. We will do our best to be a world-top supplier in this industry and manufacture our products equipped with efficiency and convenience in order to help our customers produce their own products with better quality.
