Sigma Eltec

Sigma Eltec

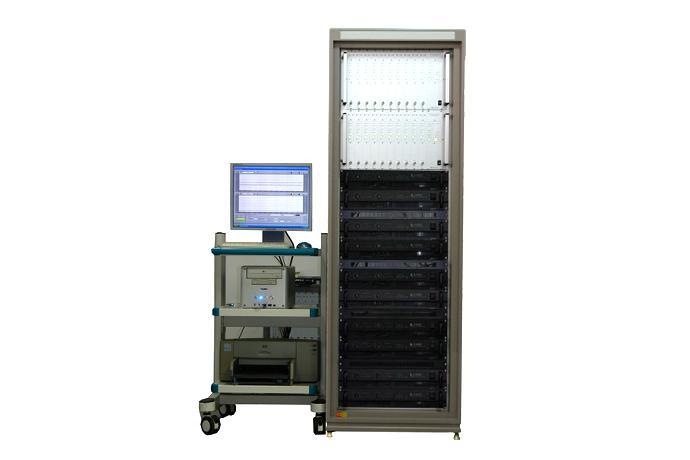

Durability Test System

Model

Series

Durability Test System


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.


Description

Introduction:

This measurement equipment is used in testing the reliability of micro speaker.
 A built-in source noise signal is a digital one, with high repeat stability. The measuring voltage is set automatically.
 The measurement results are recorded a computer in real time.
 It guarantees easy analysis of speaker capacity, as all the measurement data (RMSV, CURRENT, W) are recorded in it. Connected to a large-output power amp, enables testing of a large-output speaker.

Special Feature:

1. Speaker power monitor SP-6010 allows you to control all functions in the Window environment by connecting with a PC.
   It also displays measurement results and saves the result as a file.
 2. As the reference signals are used for setting voltage, it is very swift and accurate.
 3. It has high expandability and stability as a compact flash memory card is adopted to store various signal sources.
 4. The upper and lower limit in detecting current is automatically set in proportion to the voltage given once the percentage
   value is keyed in.
 5. By increasing the voltage periodically until the speaker is destructed, you can test the max. voltage and record it.
 6. All the measurement data are read by PC for back-up at every 10 seconds interval.
 7. The data collected and recorded 2 minutes before occurrence of Fail/Stop/End has 1seconds collecting and
   recording interval.
 8. If the power is reconnected after the power failure in the middle of measurement, the measurement continues
   the process from the moment of power failure.


Specification:

1.Interface Bus
    Interface Bus. (USB2.0)
 2.Signal Source
    Sine Wave = 1kHz (Reference)
    Noise =White. Pink
    Filter = Filter = JIS, DIN, IHF, EIAJ(SN-1), EIAJ(SN-2), EIA-426-B
    Clipper ①Crest factor = 6dB(2:1)
              ②Crest factor = 10dB(3:1)
 3.Speaker Max Input Durability Test Mode
    Step  ON/OFF=1Sec~99Hours.
    Step Levels(Auto)= Start Level~Stop Level
    Step Number=2~30Step
 4.Multi-Channel Time Current Limit
    Time ON/OFF=1Sec~10Hours.Duty
    Setting Time=1Min~1000Hours
    Setting Current=0.001A~20.00A
    Setting Volts=0.01V~200V RMS
    Max Power Test=3200W
 5.Power Requirements
    Line Voltage = 220V 50/60Hz
    Power Consumption = 160W
