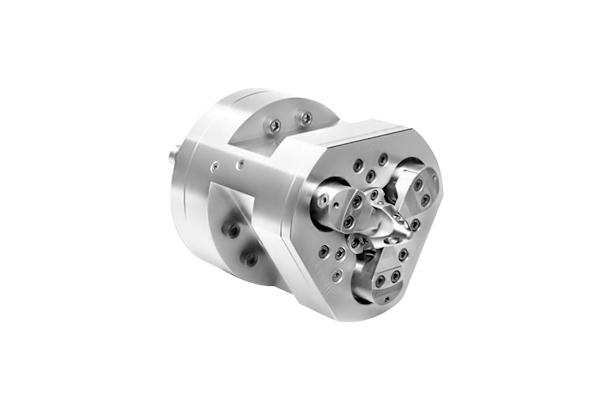

COMBINATION CHUCK WITH FACE DRIVER & FINGER (SM-CBN)
Model Name
SM-CBN 230
Series
Special Chuck
Data
-
Manufacturer information
provider logo
SEOAM

Precision gear manufacturer, Gear, Chuck, Cylinder, Curvic coupling, Reducing machine and more

Problem with product info?
Update request
Manufacturer
SEOAM
Brand
-
SKU
126716
Product Name
COMBINATION CHUCK WITH FACE DRIVER & FINGER (SM-CBN)
Model Name
SM-CBN 230, SM-CBN 250, SM-CBN 300
Size
-
Weight
-
Product Details

Feature

• This is a Shaft processing Chuck only.

• Where installed the Face Driver. When You can completer processing by just one time if you have the two times needed processing materials.

• It needs double Cylinder.



Outward Drawing





Technical data and specifications

Specifications

Spec
Model
Gripping MaxGripping MinMax. permissible input force KN(kgf)Max. static gripping force KN(kgf)
SM-CBN 2301102045(2580)75(7600)
SM-CBN 2501102575(7600)100(10200)
SM-CBN 3001404080(8150)120(12200)

Spec
Model
Max. Permissible speed r.p.mweight(With standard soft jaws)matching cylinderGD2
SM-CBN 230350068120/804.12(0.42)
SM-CBN 250300085160/807.74(0.79)
SM-CBN 3002500120160/8013.23(1.35)



Dimension

Item
Model
ABCDFJ
SM-CBN 230230133.4106.7192335518
SM-CBN 250250133.4106.7192255218
SM-CBN 300300171.4196.8692445522

Item
Model
KE MAXE MING MAXG MIN
SM-CBN 2306-M12290235186108
SM-CBN 2506-M12278226199121
SM-CBN 3006-M1230625114166



More products
