COMBINATION CHUCK WITH FACE DRIVER & FINGER (SM-CBN)
Model Name
SM-CBN 230
Data
-
Manufacturer information
SEOAM
Precision gear manufacturer, Gear, Chuck, Cylinder, Curvic coupling, Reducing machine and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
SEOAM
Product Type
Machine
Brand
-
SKU
126716
Product Name

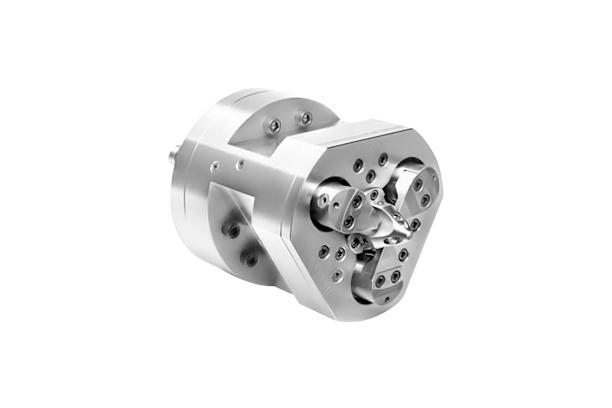

COMBINATION CHUCK WITH FACE DRIVER & FINGER (SM-CBN)
Model Name
SM-CBN 230, SM-CBN 250, SM-CBN 300
Size
-
Weight
-
Product Details
Feature
• This is a Shaft processing Chuck only.
• Where installed the Face Driver. When You can completer processing by just one time if you have the two times needed processing materials.
• It needs double Cylinder.
Outward Drawing
Technical data and specifications
Specifications
Spec Model | Gripping Max | Gripping Min | Max. permissible input force KN(kgf) | Max. static gripping force KN(kgf) |
| SM-CBN 230 | 110 | 20 | 45(2580) | 75(7600) |
| SM-CBN 250 | 110 | 25 | 75(7600) | 100(10200) |
| SM-CBN 300 | 140 | 40 | 80(8150) | 120(12200) |
Spec Model | Max. Permissible speed r.p.m | weight(With standard soft jaws) | matching cylinder | GD2 | |
| SM-CBN 230 | 3500 | 68 | 120/80 | 4.12(0.42) | |
| SM-CBN 250 | 3000 | 85 | 160/80 | 7.74(0.79) | |
| SM-CBN 300 | 2500 | 120 | 160/80 | 13.23(1.35) |
Dimension
Item Model | A | B | C | D | F | J |
| SM-CBN 230 | 230 | 133.4 | 106.719 | 233 | 55 | 18 |
| SM-CBN 250 | 250 | 133.4 | 106.719 | 225 | 52 | 18 |
| SM-CBN 300 | 300 | 171.4 | 196.869 | 244 | 55 | 22 |
Item Model | K | E MAX | E MIN | G MAX | G MIN | |
| SM-CBN 230 | 6-M12 | 290 | 235 | 186 | 108 | |
| SM-CBN 250 | 6-M12 | 278 | 226 | 199 | 121 | |
| SM-CBN 300 | 6-M12 | 306 | 251 | 141 | 66 |
