Product Name

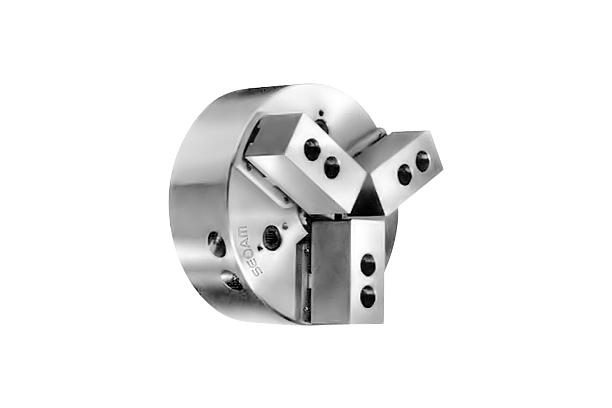

3-JAW POWER CHANGE CHUCK (SM-LVS)
Model Name
SM-LVS 06, SM-LVS 08, SM-LVS 10, SM-LVS 12
Size
-
Weight
-
Product Details
Feature
โข This chuck using to the chuck's grasp power control under processing.
โข The changable process materials easilly which will be able to rough matching and finishing process by just one process at same time.
Outward Drawing
Technical data and specifications
Specifications
Spec Model | Jaw stroke(Diameter) mm | Plunger stroke mm | Max. permissible input force KN(kgf) | Max. static gripping force KN(kgf) | Max. Permissible speed r.p.m |
| SM-LVS 06 | 10 | 4 | 22.6(2300) | 14.7(1500) | 3800 |
| SM-LVS 08 | 11 | 5 | 39.2(4000) | 29.4(3000) | 3000 |
| SM-LVS 10 | 13.2 | 6 | 58.8(6000) | 44.1(4500) | 2600 |
| SM-LVS 12 | 14.6 | 8 | 78.5(8000) | 67.7(6900) | 2200 |
Spec Model | weight(With standard soft jaws) | matching cylinder | Gripping dia(out) | Gripping dia(inside) | GD2 | |
| SM-LVS 06 | 14.5 | YAS-100 | 25~110 | 130~175 | 0.52(0.053) | |
| SM-LVS 08 | 23 | YAS-125 | 40~132 | 150~210 | 1.27(0.13) | |
| SM-LVS 10 | 35 | YAS-150 | 50~160 | 190~254 | 2.74(0.28) | |
| SM-LVS 12 | 58 | YAS-150 | 60~200 | 230~304 | 6.57(0.67) |
Dimension
Item Model | A | B | C | E | F | H | J | K | L | M |
| SM-LVS 06 | 175 | 165 | 130 | 50 | 50 | 75 | 22 | 3-M16 | 41 | 11 |
| SM-LVS 08 | 175 | 165 | 130 | 55 | 50 | 22 | 3-M16 | 53 | 12 | |
| SM-LVS 10 | 254 | 235 | 150 | 70 | 65 | 90 | 22 | 3-M16 | 59 | 13 |
| SM-LVS 12 | 304 | 260 | 170 | 80 | 90 | 105 | 22 | 6-M16 | 65 | 14 |
Item Model | N Max | N Min | O | P | R | S | X | Dro | G MAX | G MIN | |
| SM-LVS 06 | 18 | 14 | 5 | 36 | 35 | M16 | 29 | 90 | 57.5 | 52.5 | |
| SM-LVS 08 | 23 | 18 | 5 | 38 | 40 | M20 | 33 | 120 | 68.7 | 63.2 | |
| SM-LVS 10 | 27.5 | 21.5 | 4.5 | 46 | 50 | M24 | 39 | 120 | 83.7 | 76.6 | |
| SM-LVS 12 | 28.5 | 20.5 | 3.5 | 50 | 60 | M27 | 42 | 140 | 103.6 | 96.3 |
