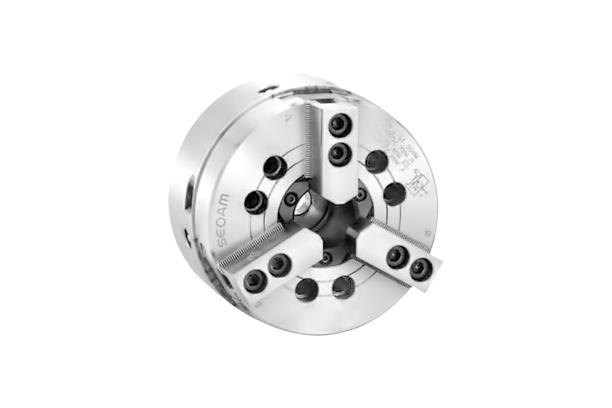

HIGH-SPEED POWER CHUCK WITH COUNTER BALANCE (SM-SPD)
Model Name
SM-SPD 06
Data
-
Manufacturer information
SEOAM
Precision gear manufacturer, Gear, Chuck, Cylinder, Curvic coupling, Reducing machine and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
SEOAM
Product Type
Machine
Brand
-
SKU
126727
Product Name
HIGH-SPEED POWER CHUCK WITH COUNTER BALANCE (SM-SPD)
Model Name
SM-SPD 06, SM-SPD 08, SM-SPD10, SM-SPD12, SM-SPD15
Size
-
Weight
-
Product Details
Feature
• It able to safety cutting by the initial grasp power maintained in high speed rotation. The reason that there were equpped the weight which is reducing the grasp power loss
by the centrifugal force of inner chuck.
Outward Drawing
Technical data and specifications
Specifications
Spec Model | Thru-hole(Diameter) mm | Jaw stroke(Diameter) mm | Plunger stroke mm | Gripping Max | Gripping Min | Max. permissible input force KN(kgf) |
| SM-SPD 06 | 33 | 5.5 | 12 | 165 | 13 | 19.60(2000) |
| SM-SPD 08 | 46 | 7.4 | 16 | 210 | 11 | 30.39(3100) |
| SM-SPD 10 | 65 | 8.8 | 19 | 254 | 31 | 37.25(3800) |
| SM-SPD 12 | 78 | 10.6 | 23 | 304 | 34 | 48.04(4900) |
| SM-SPD 15 | 117.5 | 10.6 | 23 | 381 | 30 | 69.61(7100) |
Spec Model | Max. static gripping force KN(kgf) | Max. Permissible speed r.p.m | weight(With standard soft jaws) | matching cylinder | GD2 | |
| SM-SPD 06 | 50.00(5100) | 6700 | 14.9 | YAH-06 | 0.24 | |
| SM-SPD 08 | 76.47(7800) | 5600 | 25.5 | YAH-08 | 0.59 | |
| SM-SPD 10 | 97.06(9900) | 4500 | 36.1 | YAH-10 | 1.27 | |
| SM-SPD 12 | 126.47(12900) | 3500 | 30.4 | YAH-12 | 3.0 | |
| SM-SPD 15 | 176.47(18000) | 2800 | 111 | YAH-15 | 9.1 |
Dimension
Item Model | B | C | D | E | H | J | K | L | M | N | O | P |
| SM-SPD 06 | 135 | 104.78 | 82.552 | 48.8 | 20 | 98 | 15 | 6-M10 | 33 | 4 | 6.5 | 16.28 |
| SM-SPD 08 | 165 | 133.35 | 106.375 | 61 | 25 | 110 | 18 | 6-M12 | 39 | 5 | 6.5 | 19.46 |
| SM-SPD 10 | 210 | 171.45 | 139.719 | 84.5 | 30 | 114 | 24 | 6-M16 | 45 | 5 | 8 | 24.21 |
| SM-SPD 12 | 210 | 171.45 | 139.719 | 96 | 30 | 125 | 23 | 6-M16 | 51 | 5 | 8 | 24.21 |
| SM-SPD 15 | 281 | 235 | 196.869 | 139 | 43 | 154 | 30 | 6-M20 | 70 | 5 | 10 | 29.36 |
Item Model | R | S | T | W | A1 | A2 | F MAX | F MIN | G MAX | G MIN | ||
| SM-SPD 06 | 31 | 12 | M42XP1.5 | 33 | 20 | 175 | 165 | 27.5 | 24.75 | 26.25 | 8.25 | |
| SM-SPD 08 | 35 | 14 | M55XP2.0 | 46 | 25 | 215 | 210 | 35.7 | 32 | 31.25 | 10.25 | |
| SM-SPD 10 | 40 | 16 | M75XP2.0 | 65 | 30 | 254 | 254 | 50 | 45.6 | 33.75 | 11.25 | |
| SM-SPD 12 | 50 | 21 | M88XP2.0 | 78 | 33 | 304 | 304 | 58 | 52.7 | 48.75 | 11.25 | |
| SM-SPD 15 | 62 | 22 | M130XP2.0 | 117.5 | 33 | 381 | 381 | 82 | 76.7 | 46.75 | 13.75 |
