Product Name

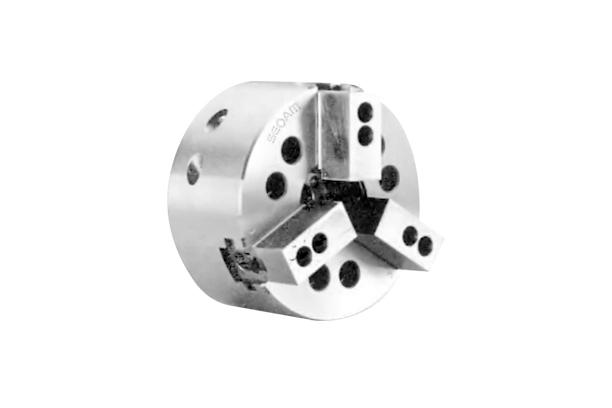

3-JAW LONG STROKE LEVER CHUCK (SM-LVL)
Model Name
SM-LVL 06, SM-LVL 08, SM-LVL 10, SM-LVL 12
Size
-
Weight
-
Product Details
Feature
โข This chuck using to many process of Jaw Stroke volume.
โข It is not fitting to high degree or powerful cutting.
Outward Drawing
Technical data and specifications
Specifications
Spec Model | Jaw stroke(Diameter) mm | Plunger stroke mm | Gripping Max | Gripping Min | Max. permissible input force KN(kgf) |
| SM-LVL 06 | 32 | 20 | 165 | 10 | 22.6(2300) |
| SM-LVL 08 | 40 | 25 | 215 | 28 | 31.4(3200) |
| SM-LVL 10 | 42 | 28 | 245 | 42 | 37.3(3800) |
| SM-LVL 12 | 50 | 35 | 304 | 20 | 49(5000) |
Spec Model | Max. static gripping force KN(kgf) | Max. Permissible speed r.p.m | weight(With standard soft jaws) | GD2 | |
| SM-LVL 06 | 19.6(2000) | 3600 | 11 | 0.37(0.038) | |
| SM-LVL 08 | 27.5(2800) | 3000 | 23 | 01.27(0.13) | |
| SM-LVL 10 | 34.3(3500) | 2400 | 34 | 2.74(0.28) | |
| SM-LVL 12 | 48.1(4900) | 2100 | 62 | 7.154(0.74) |
Dimension
Item Model | A | C | F | H | J | K | L | M | N Max | N Min | O |
| SM-LVL 06 | 165 | 104.8 | 60 | 21 | 16 | 80 | M30Xp2.0 | 6-M12 | 18 | -12 | 32 |
| SM-LVL 08 | 215 | 133.4 | 80 | 36 | 20 | 93 | M45XP2.0 | 6-M12 | 21 | -4 | 39 |
| SM-LVL 10 | 254 | 133.4 | 105 | 55 | 17 | 111 | M65XP2.0 | 6-M12 | 26 | -2 | 44 |
| SM-LVL 12 | 304 | 171.4 | 110 | 62 | 22 | 130 | M72XP2.0 | 6-M16 | 31.5 | -3.5 | 49 |
Item Model | P | R | S | Bro | D MAX | D MIN | E MAX | E MIN | G MAX | ||
| SM-LVL 06 | 3 | 10 | 20 | 28 | 140 | 39.8 | 23.8 | 30 | 9 | 185 | |
| SM-LVL 08 | 5 | 10 | 25 | 35 | 190 | 53.8 | 33.8 | 35 | 10 | 238 | |
| SM-LVL 10 | 5 | 12 | 25 | 40 | 230 | 67.3 | 46.3 | 37.5 | 13.5 | 280 | |
| SM-LVL 12 | 5 | 14 | 30 | 45 | 230 | 73.3 | 48.3 | 52 | 14 | 334 |
