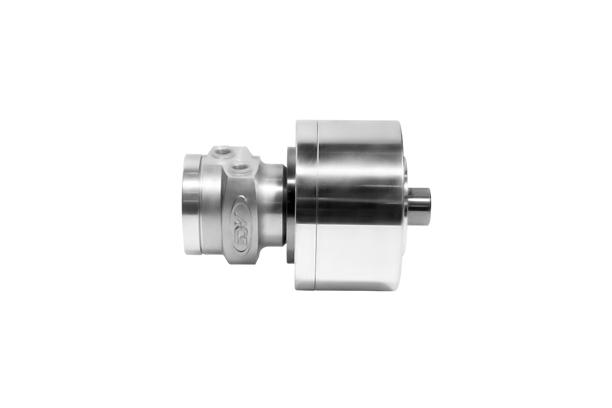

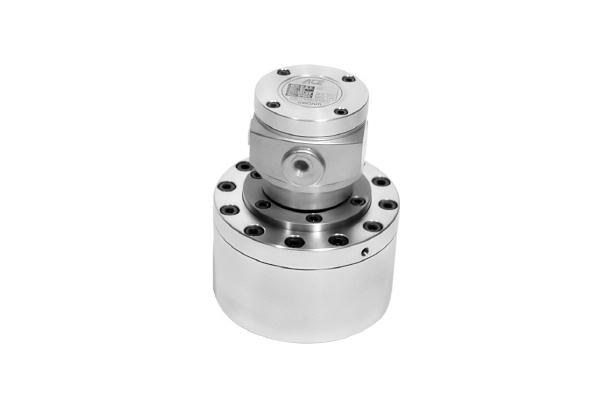

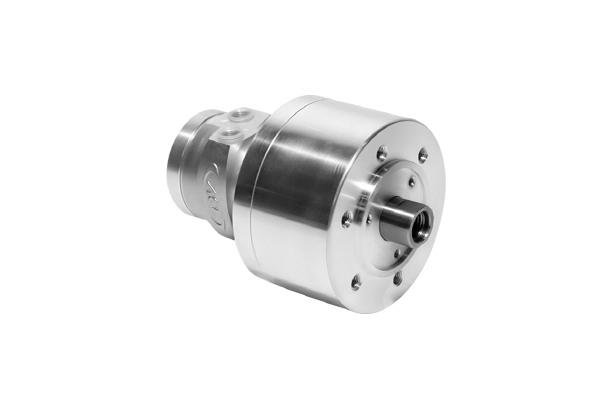

CLOSED CENTER HYDRAULIC CYLINDER(YAS)
Model Name
YAS-100
Series
Hydraulic Cylinder / Big Bore Type
Data
DRAWING-SEOAM-CLOSED CENTER HYDRAULIC CYLINDER-YAS-100
Manufacturer information
provider logo
SEOAM

Precision gear manufacturer, Gear, Chuck, Cylinder, Curvic coupling, Reducing machine and more

Problem with product info?
Update request
Manufacturer
SEOAM
Brand
-
SKU
126687
Product Name
CLOSED CENTER HYDRAULIC CYLINDER(YAS)
Model Name
YAS-100, YAS-125, YAS-150, YAS-200, YAS-65, YAS-80
Size
-
Weight
-
Product Details

Feature

• Economical model : It is the most economical model and used when a bar workpiece is not passed through headstock.

• Horizontal : Verical Type Available - As it can be installed horizontally and vertivally, it is mainly used for a vertical lathe.

• Small size & Light weight : By using aluminum alloy of mold casting method, it is simple, small in size, and light in wegiht.

• High Speed Rotation : Safety is ensured at high-speed rotation by through balance management.




Outward Drawing




Technical data and specifications

Model Description




Specifications

Spec
Model
Order NO.Max. Permissible speed r.p.mweight(With standard soft jaws)Gd moment of inertiaCylinder diaPiston strokePiston surface area extend
YAS-652AS0660003.20.11(0.011)651533.0
YAS-802AS0860004.30.29(0.03)801550.0
YAS-1002AS10600019.53.62(0.37)1052086.5
YAS-1252AS1260007.40.88(0.09)13025132.5
YAS-1502AS15550010.31.47(0.15)15030176.0
YAS-2002AS20550019.53.62(0.37)20535330.0

Spec
Model
Piston surface area retractMax draw bar pull extendMax draw bar pull retractMax operation pressureTotal leakageMatching chuck
YAS-6530.012.2(1245)11.2(1443)40.81.0CAS-04
YAS-8045.018.4(1877)16.5(1684)40.81.0CAS-05
YAS-10079.531.8(3244)29.3(2989)40.81.0CAS-06
YAS-125123.048.8(4978)45.3(4621)40.81.0CAS-08, CAS-10
YAS-150160.064.8(6610)60.0(6120)40.81.0CAS-10, CAS-12
YAS-200306.0121.6(12404)60.0(6120)40.81.0CAS-15,18,21,24,32




Dimension

Item
Model
CDEFGL1L2L3
YAS-651008060201314511165
YAS-801109065251714511165
YAS-10013510080302116813481.5
YAS-125160130110352517814491.5
YAS-1501851301104530.518515198.5
YAS-2002451451205537208.5174.5122

Item
Model
L4L5L6L7 MaxL7 MinT1T2
YAS-65-100.53045306-M8X16M12XP1.75
YAS-80-100.53045306-M8X16M16XP2.0
YAS-1006.5123.53545256-M10X19M20XP2.5
YAS-1256.5133.54050256-M12X22M24XP3.0
YAS-1506.5140.54555256-M12X20M30XP3.5
YAS-2006.51646069346-M16X29M36XP4.0
