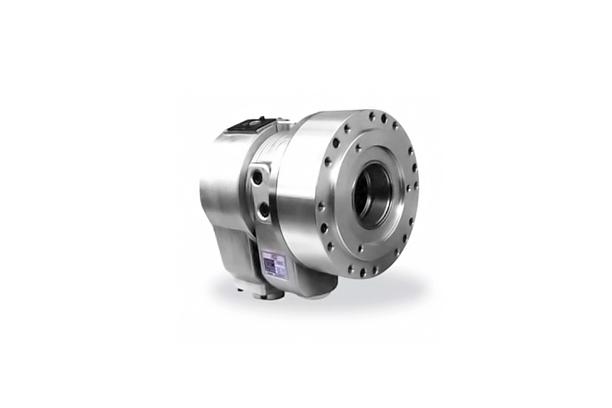

SUPER HIGH SPEED GREAT BORE HYDRAULIC CYLINDER (YSGH)
Model Name
YSGH-06
Series
Hydraulic Cylinder / Big Bore Type
Data
DRAWING-SEOAM-SUPER HIGH SPEED GREAT BORE HYDRAULIC CYLINDER-YSGH-08
Manufacturer information
provider logo
SEOAM

Precision gear manufacturer, Gear, Chuck, Cylinder, Curvic coupling, Reducing machine and more

Problem with product info?
Update request
Manufacturer
SEOAM
Brand
-
SKU
126685
Product Name
SUPER HIGH SPEED GREAT BORE HYDRAULIC CYLINDER (YSGH)
Model Name
YSGH-06, YSGH-08, YSGH-12
Size
-
Weight
-
Product Details

Feature

• Safety Guaranteed : It contatins check valves so that pulling force is kept for a certain time upon power failure, securing safety.

• Easy Repaor & Check : Thanks to easy access of chuck valves from outside, it is possible to repair and check them while cylinder is attached to the equipment.

• Leakage Prevention Design(Patent Registration:0172805) : Cylinder body is designed with a leakage prevention structure to totally eliminate the possiblility of leaking.

• Highest Draw Pull : As weight is reduced and draw pull is increased, it gurantees the best machining efficiency and stronger power.

• Enlargement of Through hole : Much larger Through Hole is the biggest size in the same grade, which enalbes broader manufacturing such as bar feeder work.



Outward Drawing




Technical data and specifications

Model Description




Specifications

Spec
Model
Order NO.Max. Permissible speed r.p.mweight(With standard soft jaws)Gd moment of inertiaCylinder diaPiston strokeThru hole dia
YSGH-082SGH08560016.50.63(0.065)1702568
YSGH-062SGH06650013.00.31(0.20)1452552
YSGH-122SGH1235003618.0(1.84)21535103

Spec
Model
Piston surface area extendPiston surface area retractMax draw bar pull extendMax draw bar pull retractMax operation pressureTotal leakageMatching chuck
YSGH-08179.6166.266.8(6814)61.8(6306)40.84.2CGH-08
YSGH-06131.6122.633.1(3377)30.8(3147)40.83.9CGH-06
YSGH-12262.3245.985.0(8667.2)72.1(7357)40.86CGH-12




Dimension

Item
Model
CDEFGHJKL1L2L3L4L5L6L7L8L9L10 Max
YSGH-082101901601208570154111105.212.7765153575102.546
YSGH-061801651408970551359699975.55.5102012.18101.558
YSGH-1226322520014512010620214814814108.55.515307515555

Item
Model
L10 MinL11 MaxL12L13L14L15L16MNOPQT1T2T3T4T5
YSGH-08212515588401495510071.568751456-M10X18M75XP2.0M74XP1.5PT-1/24-M5X10
YSGH-063322138.67940130558559.552601106-M10X17M60XP1.5M60XP1.5PT-1/24-M6X6
YSGH-122035211126401955513510810311219012-M12X20M111XP2.0M111XP2.0PT-1/24-M6X15
