Feature
• High Performance and High Accuracy : It has the same structure as YAH cylinder, and guarantees excellent performance and quality. Attachment part and changable parts are compatible each other.

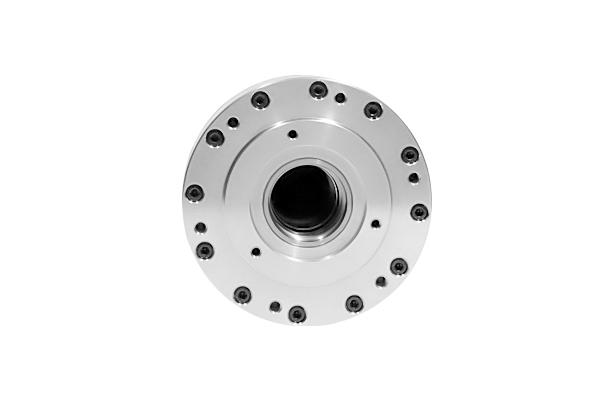

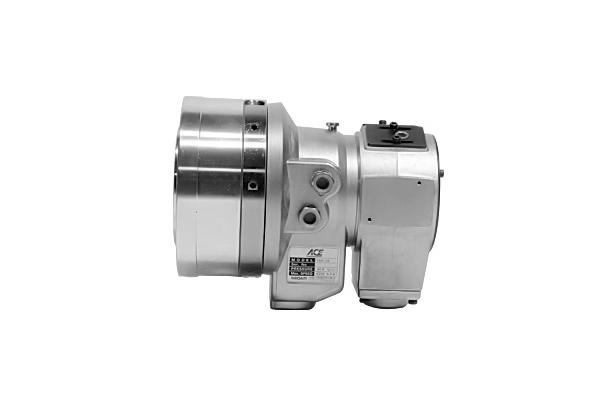

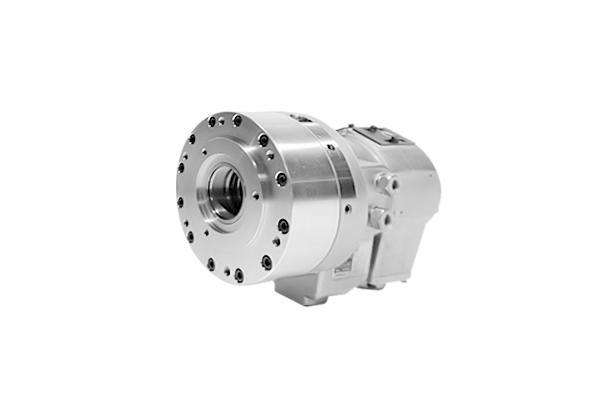

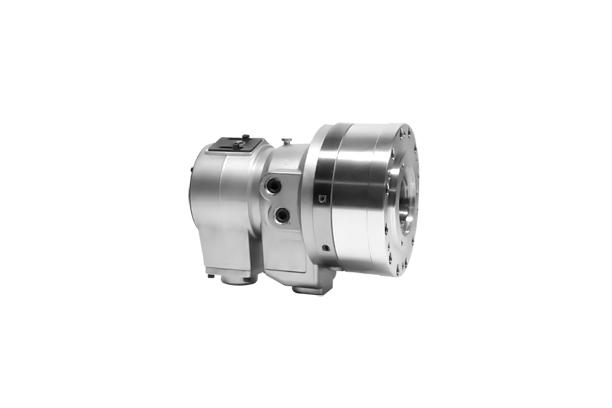

Outward Drawing
Technical data and specifications
Model Description
Specifications
Spec Model | Order NO. | Max. Permissible speed r.p.m | weight(With standard soft jaws) | Gd moment of inertia | Cylinder dia | Piston stroke | Thru hole dia |
YAHL-08 | 2AHL08 | 6200 | 17.5 | 1.96(0.20) | 160 | 34 | 52 |
YAHL-10 | 2AHL10 | 5000 | 26.0 | 3.43(0.35) | 185 | 40 | 77 |
YAHL-12 | 2AHL12 | 3800 | 34.0 | 5.88(0.60) | 205 | 50 | 91 |
YAHL-15 | 2AHL15 | 2800 | 55.0 | 14.7(1.5) | 255 | 50 | 117.5 |
Spec Model | Piston surface area extend | Piston surface area retract | Max draw bar pull extend | Max draw bar pull retract | Max operation pressure | Total leakage | Matching chuck | |
YAHL-08 | 172.8 | 162.6 | 65.0(6627) | 61.2(6236) | 40.8 | 6.5 | CAH-08 | |
YAHL-10 | 213.3 | 197.9 | 80.2(8180) | 74.5(7590) | 40.8 | 4.2 | CAH-10 | |
YAHL-12 | 251.5 | 235.0 | 94.6(9646) | 88.4(9013) | 40.8 | 4.5 | CAH-12 | |
YAHL-15 | 367.5 | 356.7 | 129.6(13230) | 125.8(12841) | 40.8 | 7.0 | CAH-15,18,21,24 |
Dimension
Item Model | C | D | E | F | G | H | J | K | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | L10 Max |
YAHL-08 | 195 | 170 | 130 | 90 | 70 | 55 | 120 | 91.2 | 148 | 12 | 103.5 | 5.5 | 15 | 35 | 6 | 5 | 137.5 | 53 |
YAHL-10 | 218 | 190 | 160 | 120 | 95 | 80 | 145 | 116.2 | 161 | 12 | 110.5 | 5.5 | 15 | 35 | 6 | 5 | 144.5 | 59 |
YAHL-12 | 247 | 215 | 180 | 135 | 110 | 95 | 167 | 131.2 | 182.5 | 14 | 128.5 | 5.5 | 15 | 35 | 6 | 5 | 161.5 | 69 |
YAHL-15 | 307 | 275 | 230 | 170 | 140 | 123 | 212 | 167 | 192 | 20 | 126 | 6 | 20 | 45 | 9.5 | 6 | 200.75 | 60.5 |
Item Model | L10 Min | L11 Max | L11 Min | L12 | L13 | L14 | L15 | L16 | M | N | O | P | T1 | T2 | T3 | T4 | T5 | |
YAHL-08 | 19 | 25 | -5 | 204 | 81 | 36 | 130 | 40 | 82 | 56 | 52 | 60 | 6-M10 X 18 | M60XP2.0 | M58XP1.5 | PT-1/2 | M5X10 | |
YAHL-10 | 19 | 35 | -5 | 223 | 95 | 36 | 150 | 40 | 107 | 81 | 77 | 85 | 12-M10 X 18 | M85XP2.0 | M84XP2.0 | PT-1/2 | M5X10 | |
YAHL-12 | 19 | 45 | -5 | 250 | 107 | 36 | 166 | 40 | 122 | 96 | 91 | 100 | 12-M12 X 22 | M100XP2.0 | M99XP2.0 | PT-1/2 | M5X10 | |
YAHL-15 | 17.5 | 46 | -4 | 279.5 | 134 | 20 | 215 | 40 | 160 | 134.6 | 117.5 | 135 | 12-M16 X 32 | M130XP2.0 | - | PT-1/2 | 6-M6X10 |
