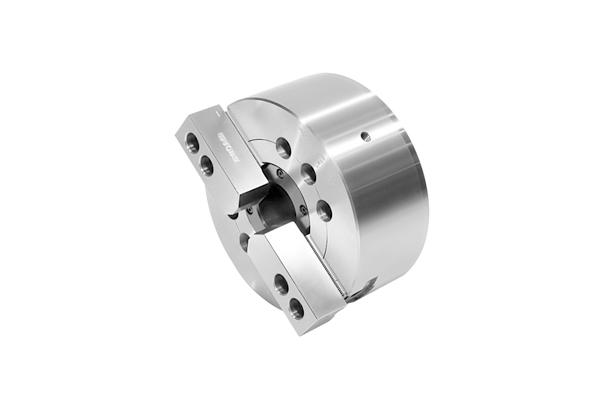

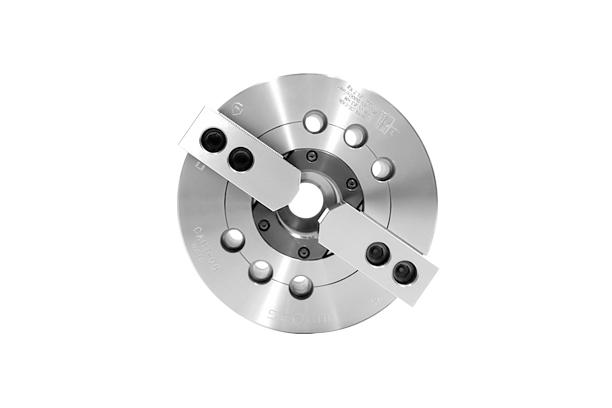

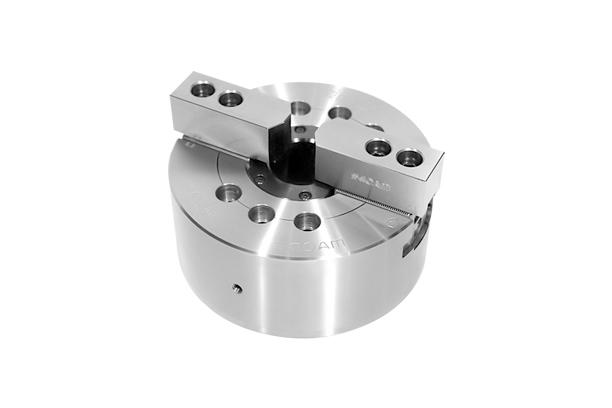

2-JAW BIG BORE POWER CHUCK (CAHT)
Model Name
CAHT-06
Series
Chuck / Big Bore Type
Data
DRAWING-SEOAM-2-JAW BIG BORE POWER CHUCK-CAHT-06
Manufacturer information
provider logo
SEOAM

Precision gear manufacturer, Gear, Chuck, Cylinder, Curvic coupling, Reducing machine and more

Problem with product info?
Update request
Manufacturer
SEOAM
Product Type
Machine
Brand
-
SKU
126655
Product Name
2-JAW BIG BORE POWER CHUCK (CAHT)
Model Name
CAHT-06, CAHT-08, CAHT-10, CAHT-12, CAHT-15
Size
-
Weight
-
Product Details

Features

• Clamping of Irregular Work : It shows excellent performance for irregular work such as square bar, especially, for manufacturing irregular materials using a bar feeder.

• High Performance and High Accuracy : It has the same structure as CAH power chuck, and guarantees excellent performance and quality. Attachment part and
                                                                      changable parts are compatible each other.

• Spindle Direct-Mounting Type : International standard A-type spindle specification is applied to CAHTA type, so it is possible to directly attach to short taper spindle.



Outward Drawing



Technical data and specifications


Model Description




Specifications

Spec
Model
Order NO.Spindle nose NO.Thru-hole(Diameter) mmJaw stroke(Diameter) mmPlunger stroke mmGripping MaxGripping Min
CAHT-061AHT06A2-5465.51316913
CAHT-081AHT08A2-6527.61816913
CAHT-101AHT10A2-8778.52025431
CAHT-121AHT12A2-89110.22430434
CAHT-151AHT15A2-1111810.62338130

Spec
Model
Max. permissible input force KN(kgf)Max. static gripping force KN(kgf)Max. Permissible speed r.p.mweight(With standard soft jaws)Gd moment of inertiamatching cylinderMatching soft jaw
CAHT-0616.6(1700)42(4284)600012.32.20(0.22)YAH-06SJ-06T1
CAHT-0816.6(1700)63(6398)500021.76.86(0.70)YAH-08SJ-08T1
CAHT-1033.3(3400)83.3(8493)420033.712.55(1.28)YAH-10SJ-10T1
CAHT-1239(3995)100(10200)33005126.47(2.7)YAH-12SJ-12A1
CAHT-1547(12236)120(12236)250011587.25(8.90)YAH,YSH-15SJ-15T1



DIMENSION

Item
Model
ABCFGHJKLMN MaxN MinO Max
CAHT-06169801405116104.8463-M10122033.530.723
CAHT-08210911705150133.4523-M12152541.737.927
CAHT-102541002205190171.4773-M16173054.550.331
CAHT-123041152206190171.4913-M16183062.156.745
CAHT-1538113330062602351186-M2030438276.743.75

Item
Model
O MinP MaxP MinQRSTU MaxVWXYZ
CAHT-061012-13212192M55X2.03-M660203366
CAHT-081016.5-1.5381420.52M60X2.03-M666303986
CAHT-10129.5-10.54416272M85X2.03-M8943045108
CAHT-121510-145021212M100X2.03-M81083051111
CAHT-1518.2511-126222395M130X23-M101396070165
