SAM WON

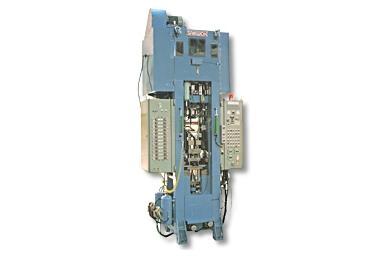

Mechanical 100 Ton Compacting Press

Model

Series

Products

Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.

Description

SAM WON Mechanical 100 Ton Compacting Press SW-100-MC

Model NO.

SW - 100 - MC

Specifications

Technical Data	SW - 100 - MC	SW - 200 - MC
Adjustable pressing force	Max. 100 Ton	Max. 200 Ton
Adjustable Ejection force	Max. 50 Ton	Max. 150 Ton
Filling Height	Max. 150 ㎜	Max. 150 ㎜
Upper Ram Stroke	200 ㎜	200 ㎜
Ejection Stroke	Max. 100 ㎜	Max. 100 ㎜
Upper punch Air Cushion	65 ㎜	120 ㎜
Upper Punch Adjustment	100 ㎜	150 ㎜
Float Punch Ejecting Stroke	Max. 15 ㎜	Max. 15 ㎜
Diameter of Compact	Max. Ø 100 ㎜	Max. Ø 120 ㎜
Under & over fill Stroke	7.5 ㎜	7.5 ㎜
Stopper Capacity	50 Ton	100 Ton
Stoke per Minute(S.P.M.)	6 ~ 24 pcs / min	6 ~ 24 pcs / min
Working Air Pressure	5 ~ 7 ㎏ / ㎠	5 ~ 7 ㎏ / ㎠
Main Motor	18.5 ㎾	22 Kw
Clutch & Brake	Combination Type	Combination Type
Compression Indicator	Digital	Digital
Lubrication	Sealed oil bath type	Sealed oil bath type
Overload Protection	Electro-hydraulic sensor	Electro-hydraulicsensor
Safety System	Photo Electronics(Photo cell)	Photo Electronics(Photo cell)
Hopper Capacity(approx.)	55 liter	100 liter
Power Supply	220 Volt, 60 Hz, 3 Phases	220 Volt, 60 Hz, 3 Phases
Net Weight(Approx.)	13 Ton	23 Ton
Dimension(Approx.)	5,970(H)×2,600(W)×2,005 ㎜(D)	6,600(H)×4,205(W)×2,495(D)

Features

•The crank type mechanism of the machine provides strong power with high accuracy and consistent pressing force.
•Main drive system served by centralized oil bath system ensures long life operation and few mechanical trouble.
•Using Ejection Position Constant system that ejection position is always the same regardless of filling height can make the operation and handling more easier
•Unique floating die pressing system and stopper design ensures accurate and uniform density balance.
•The use of the C-type tool holder(Die set)can produce parts of uniform density with five steps, upper 2 steps and lower 3 steps.
•All handles and gauges to control can be operated by motor and the digital counter on control panel.
