Mechanical 10 Ton High Speed Compacting Press

Model

Series

Products

Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.

Description

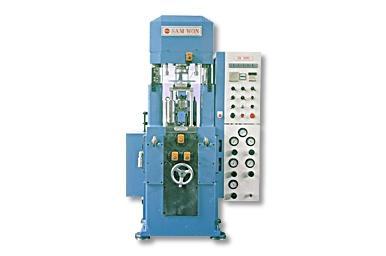

SAM WON Mechanical 10 Ton High Speed Compacting Press SW-10-MH

Model NO.

SW - 10 - MH

Specifications

TECHNICAL DATA	SW - 10 - MH	SW - 20 - MH
Compression force	Max. 10 Ton	Max. 20 Ton
Ejecting force	Max. 3 Ton	Max. 5 Ton
Filling height	Max. 15 - 30 ㎜	Max. 20 - 30 ㎜
Float punch filling capacity	Max. 15 - 30 ㎜	Max. 20 ㎜
Upper punch Stroke	60 ㎜	70 ㎜
Upper Punch Adjustment	30 ㎜	30 ㎜
Die Ejecting Stroke	Max. 15 ㎜	Max. 20 ㎜
Float Punch Ejecting Stroke	Max. 15 ㎜	Max. 20 ㎜
Die filling Force	Approx. 70 - 100 ㎏	Approx. 70 - 100 ㎏
Float Punch Filling Force	Approx. 30 - 60 ㎏	Approx. 70 - 100 ㎏
Float Punch Stopper Force	10 Ton	20 Ton
Float Punch Stopper Adjustment	0 - 10 ㎜	0 - 10 ㎜
Fixed Punch Face Adjustment	Approx. 5 ㎜	Approx. 5 ㎜
Float Punch face Adjustment	Approx. 5 ㎜	Approx. 5 ㎜
Core Rod Face Adjustment	Approx. 15 ㎜	Approx. 15 ㎜
Holding Down Force	50 ㎏	50 ㎏
Holding Down Stroke	18 ㎜	18 ㎜
S.P.M. (stroke per minute)	25 - 100 pcs/min	25 - 80 pcs/min
Feeder Stroke	60 ㎜	70 ㎜
Hopper Capacity	9 liter	20 liter
Motor	2.2 ㎾ × 4 P ( 220 volt 3 phases )	3.7 ㎾ × 4 P ( 220 volt 3 phases )
Clutch & Brake	Air Combination Spring Return Brake	Air Combination Spring Return Brake
Speed reducer	VM - 4 Speed Ratio 1.4	VM - 4 Speed Ratio 1.4
Oil supply system	Sealed Oil Bath Type	Sealed Oil Bath Type
Net Weight	Approx. 1,700 Kgs	Approx. 3,200 Kgs
Dimension	1795(H)×1035(W)×1442(D)	2170(H)×1180(W)×1783(D)

Features

•Specially designed for high speed production of thin compacts with floating die pressing system.
•Using Ejection position Constant system that ejection position is always the same regardless of filling height can make the operation easier.
•Oil - bath system with centralized oil supply prevents all parts from abrasives spite of high speed performance.
•Easy to change and fix tools and designed for accurate tool setting.
•Compact machine design results in few mechanical trouble and easiness of installation.
