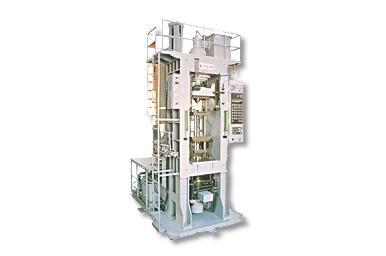

SAM WON Hydraulic 250 Ton Compacting Press SW-250-HD

Model NO.

SW - 250 - HD

Specifications

Technical Data	Hydraulic 250 Ton
Max. Pressing Capacity	250 Ton
Working Pressure	20 ~ 200 Kgf / ㎠
Pump	High Pressure 47L/min × 210Kgf/㎠, Row Pressure 145L/min × 70Kgf/㎠
Diameter of Main Cylinder	Ø 420 ( 1385.5 ㎠ )
Cylinder Stroke	Max. 270 ㎜
Cylinder Speed	Speed Up 200㎜/sec, Pressure 5.5 ㎜ / sec, Speed Down 220㎜/sec
Filling Height	150 ㎜
Tank Capacity	800 L
Overall Height Approx.	5,300 ㎜
Overall Width Approx.	3,800 ㎜
Weight	12 Ton
Motor ( Main )	40 HP × 6 P

Features

•Hydraulic press good for compacting high precision and difficult shapes.
•Relatively low price comparing to mechanical press in big capacity.
•Diversified structure for different use (powder compacting press, diamond press, etc)
•Price and design will be changed to castomer's various demands.
