Description

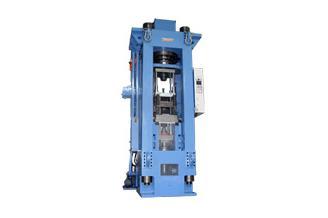

SAM WON Hydraulic 1000 Ton Compacting Press SW-1000-HD

Model NO.

SW - 1000 - HD




Specifications

MAX PRESSING CAPACITY

1000 TON (200㎏f/㎝)

WWORKING PRESSURE

30 ~ 200 (㎏f/㎝)

PUMP

고압 PUMP

29.8L/MIN × 210 ㎏f/㎝

저압 PUMP

132.7L/MIN × 50 ㎏f/㎝

DIAMETER OF MAIN CYLINDER

φ800 ㎜ (5,024㎠)

CYLINDER STROKE

MAX 450 ㎜

OPEN HEIGHT

MAX 3,425 ㎜

ADJUSTMENT DEPTH

±10 ㎜

CYLINDER SPEED

고속상승

195 ㎜/sec

가 압

4 ㎜/sec

고속하강

195 ㎜/sec

동작방법

프 레 스

촌동, 연동, 자동

DIE SET

1000 × 1200 × 350

MOTOR CAPACITY



220V × 73HP × 6P × 1 SET

220V × 20HP × 6P × 1 SET

TANK CAPACITY

1000 ℓ

OVERALL HEIGHT APPROX

8,260 ㎜

OVERALL DEPTH APPROX

2,010 ㎜

OVERALL WIDTH APPROX

2,200 ㎜

WEIGHT

110 TON





Features

•Hydraulic press good for compacting high precision and difficult shapes.

•Relatively low price comparing to mechanical press in big capacity.

•Diversifiued structure for different use (powder compacting press, diamond
 press, etc)

•Price and design will be changed to castomer's various demands.
