SAM WON

Mechanical 150 Ton Compacting Press

Model

Series

Products

Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.

Description

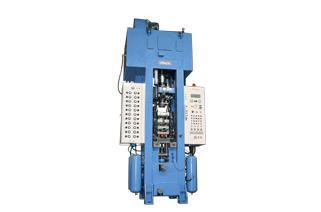

SAM WON Mechanical 150 Ton Compacting Press SW-150-MC

Model NO.

SW - 150 - MC

Specifications

ADJUSTABLE PRESSING FORCE	MAX.150 TON
ADJUSTABLE EJECTION FORCE	MAX.100 TON
FILLING HEIGHT	MAX.150 ㎜
LOWER PRESSING STROKE	MAX.50㎜
EJECTION STROKE	MAX.150 ㎜
DIAMETER OF COMPACT	MAX. Φ100㎜
UPPER RAM STROKE	MAX.200 ㎜
FEEDER STROKE	MAX.225 ㎜
UPPER PUNCH STROKE	130 ㎜
LOWER PUNCH ADJUSTABLE	±5 ㎜
STROKE PER MINUTE(S.P.M.)	6~24 pcs/min
STOPPER CAPACITY	MAX.70 TON
MOTOR	30 ㎾ × 4P
UPPER PUNCH AIR CUSHION CAPACITY	130 ㎜
UNDER FILL (OVER FILL)STROKE	5 ㎜
CORE ROD CYLINDER CAPACITY	150 ㎏
SPEED REDUCER	GEAR TYPE
VARIATOR	INVERTER TYPE
CLUTHC AND BRAKE	COMBINATION TYPE
FEEDER TYPE	RECTILINEAR TYPE
HOPPER CAPACITY(APPROX.)	60 LTR
SAFETY SYSTEM	PHOTO CELL ELECTRONICS
WORKING AIR PRESSURE	5~7 ㎏/㎠
NET WEIGHT(APPROX.)	18,000 ㎏
DIMENSION(APPROX.)	5970(H)×2600(W)×2005(D)

Features

• The crank type mechanism of the machine provides strong power with high accuracy and consistent pressing force.

•Main drive system served by centralized oil bath system ensures long life operation and few mechanical trouble.

•Using Ejection Position Constant system that ejection position is always the same regardless of filling height can make the operation and handling more easier.

•Unique floating die pressing system and stopper design ensures accruate and uniform density balance.

•The use of the C-type tool holder (die set)can produce parts of uniform density with five steps, upper 2 steps and lower 3 steps.
