SAM WON

Mechanical 30 Ton Compacting Press

Model

Series

Products

Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Contact the manufacturer/supplier.

Description

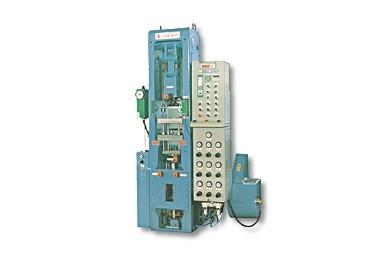

SAM WON Mechanical 30 Ton Compacting Press SW-30-MC

Model NO.

SW - 30 - MC

Specifications

Adjustable pressing force	30 Ton
Adjustable Ejection force	30 Ton
Filling Height	100 ㎜
Diameter of Compact	Ø75 ㎜
Upper Ram Stroke	150 ㎜
Upper Ram	60 ㎜
Lower Ram Adjustment	65 ㎜
Ejection Stroke	0 - 65 ㎜
Stroke per Minute(SPM)	8 - 32 S.P.M.
Upper punch Holding Down Stroke	70 mm
Die Control Stroke	35 mm
Stopper Capacity	20 TON
Motor	VM 55 (5.5Kw - 4P) SAKAI Co.
Clutch	ACSB 50 (OGURA Co.)
Speed Reducer	CYCLO DRIVE TYPE (SUMITOMO Co.)
Compression indicator	ANALOGUE
Safety system	Photo Electronics (Photo cell)
Working Air Pressure	5 - 7 ㎏ / ㎠
Overload Protection	Electro-hydraulic sensor
Lubrication	GREASE PUMP
Hopper Capacity	50 LITER
Dimension (Approx.)	2,550(H)×1496(W)×1265(D)㎜
Net Weight (Approx.)	2,700 Kg

Features

•Toggle - link type drive mechanism of the press provides superior compression with good density balance.
•Filling system of lower ram to be operated by air cylinder and subsidiary filling cam ensures constant filling quantity and appropriate filling force adjustment.
•Stable and sturdy design combined with one cast-iron frame results in the high precision of compacts. The driver mechanism at the lower parts provides the good stability.
•Die floating prevention system by cam and special air cylinder enables to make thin shape and flange shape compacts.
