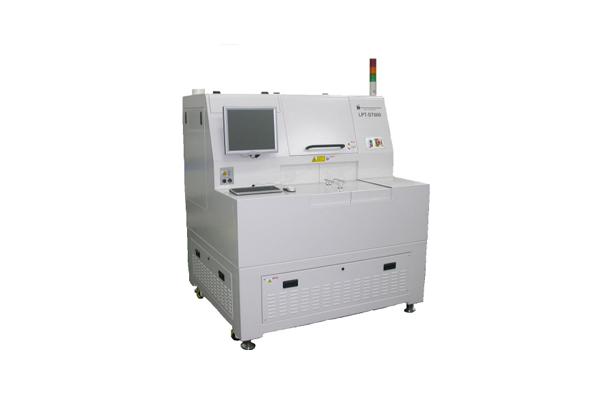

Laser Trimmer
Model Name
LPT-DT600
Series
Previous Products
View All
Data
-
Manufacturer information
provider logo
LASER & PHYSICS

Laser Module manufacturer, Eximer Laser, Semi Conductor, Display, PCB, EMC

Problem with product info?
Update request
Manufacturer
LASER & PHYSICS
Product Type
Machine
Brand
-
SKU
127020
Product Name
Laser Trimmer
Model Name
LPT-DT600
Size
-
Weight
-
Product Details

Products Detail

- ITO patterning

- Laser, X-Y-Z stage,

- Vision, Control S/W



Products Introduction

Model    LPT-DT600
Laser type    DPSS Nd:YAG Laser
Wave length   355 nm
Pulse repetion rate   Single ~ 70 ㎑
Power   > 10 W
Power stability    < 2% rms
Warming up   < 10 min.
Spot size   25 ㎛
Cooling    water + air
Dimension    1500mm(W) x 1648mm(H) x 1200mm(D)
Voltage    220V, 3PH
Weight    < 1,500 kg
VisionCCD Camera(1024x768), FOV: 4 x 3 mm
SoftewareUser Friendly Software, Applicable File Format: *.dxf, *.plt etc.

- ITO Patterning,FPCB cutting, glass marking, sapphire scribing, etc.

- Precision processing machine with X-Y-Z stage and vision.

- User friendly software. Applicable file: .dxf, .plt
