Products Introduction

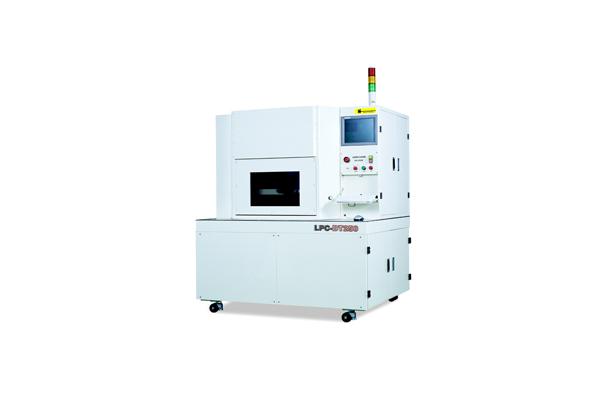

| Model | LPC-DT250 |
| Laser type | DPSS Nd:YAG Laser |
| Wave length | 355 nm |
| Pulse repetition rate | Single ~ 100 ㎑ |
| Average energy | 7 W (1~10W option) |
| Power stability | < 5% |
| Warming up | 30 min. |
| Beam size | Φ3 mm |
| Accuracy | 100 ㎛ |
| Cooling | water + air |
| Dimension | 1500mm(W) x 1648mm(H) x 1200mm(D) |
| Voltage | 220V, 3PH |
| Weight | < 500kg |
| Vision | FOV : 3x4mm vision system, |
| Software | User friendly software |
- Cutter for film cutting
- Higher accuracy than mechanical cutter
- Cutting without damage of material
