Products Detail

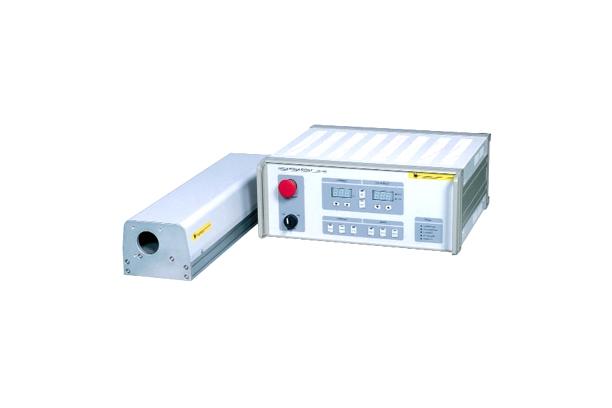

Laser head, Power supply, Chiller
Products Introduction
| Model | DNA-B35P |
| Laser type | DPSS Nd:YAG Laser |
| Wave length | 1064 nm |
| Power | CW 35 W |
| Q-switching | 100 kHz 까지 |
| Power stability | ≤ 1 % |
| Refrigerant | R134A (enviroment freindly) |
| Cooling | water |
| Voltage | 85 ∼ 240V |
| Electric power(max) | power supply : 500 W |
| Dimension | laser head :150(W)×120(H)×570(L) |
| Weight | laser head : 5 kg |
- Optimized structure
- The cost of maintenance of usage are low
- A wide use laser
