Product Name Ceiling & Floor Mounted Type
Model PA Series
Series Freon Unit Cooler
Catalog
Product Description

 - Low noise level by 6 pole motor.
 - Improved defrost capacity by suction hood.
 - Easy maintenance & reliable operation.
 - High quality & efficiency.

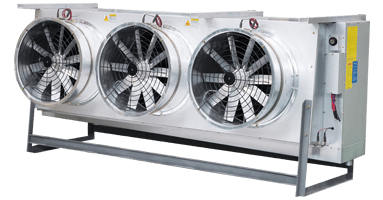

KyungDong R&H Ceiling & Floor Mounted Type PA Series

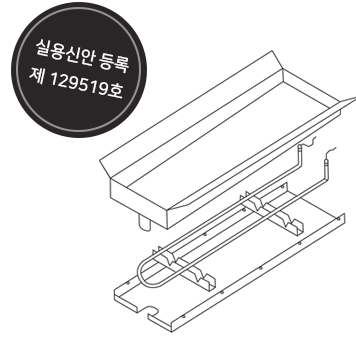

■ UNIT COOLER Using of the Double Drain Pan on the electric Defrost

KyungDong R&H Ceiling & Floor Mounted Type PA Series 1
<FEATURE>
1.High Efficiency of the Drain Pan Defrost
- Maximize drain dffect by using of the double pan
2.Saving of Operating Coat
- Low electric consumption&low operating cost used by smaller Heater capacity than the existing product
3.Long lasting peration of heater
- It is installed at the dry space
4.Easy repairing and maintenance
- Easy disassembly of the Double pan without disjointing of the pipe and the drain pan

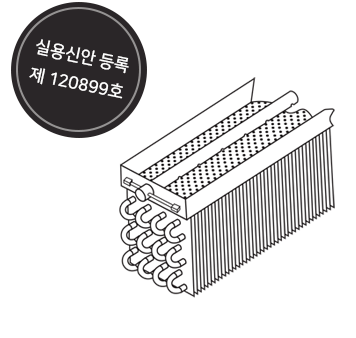

■ With the special structure of plate consisting of hole on the defrost

KyungDong R&H Ceiling & Floor Mounted Type PA Series 2
<FEATURE>
1.Reduce scattering Q'ty to outside on the defrost than nozzle type
- Water spray defrost by the natural head
2.Constant defrost effdct
- Increasing of the defrost dffect by hole interval and size adjustment in accordance with the fin distance
3.Prevent ice formation on the cold storage
4.Perfect defrost of header by using of the nozzle

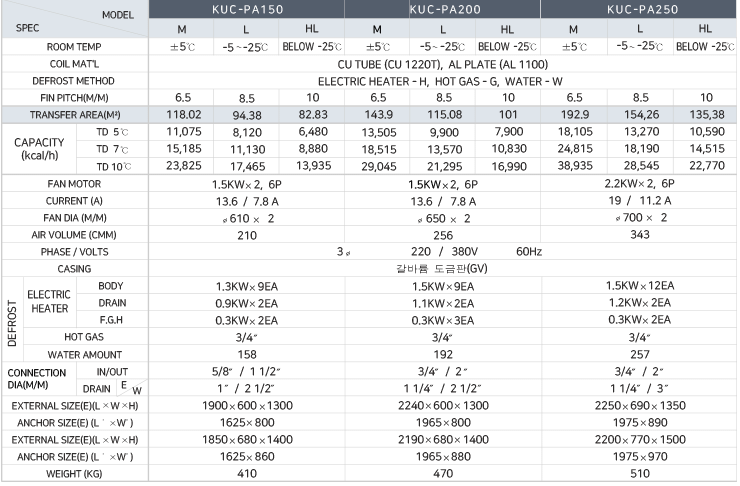

UNIT COOLER PA-TYPE SPECIFICATION (AXIAL FAN)

SPEC  \  MODEL
ROOM TEMP
COIL MAT'L
DEFROST METHOD
FIN PITCH(M/M)
TRANSFER AREA(M2)
CAPACITY
(kcal/h)
TD 5℃
TD 7℃
TD 10℃
FAN MOTOR
CURRENT(A)
FAN DIA(M/M)
AIR VOLUME(CMM)
PHASE/VOLTS
CASING
KyungDong R&H Ceiling & Floor Mounted Type PA Series 3 ELECTRIC
HEATER
BODY
DRAIN
F.G.H
HOT GAS
WATER AMOUNT
CONNECTION DIA(M/M) IN/OUT
DRAIN E/W

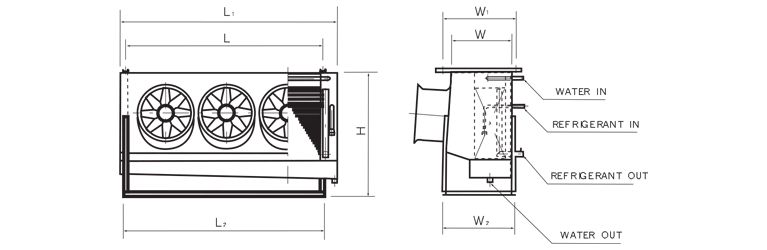

EXTERNAL SIZE(E)(L*W*H)
ANCHOR SIZE(E)(L'*W')
EXTERNAL SIZE(E)(L*W*H)
ANCHOR SIZE(E)(L'*W')
WEIGHT(KG)
KUC-PA150 KUC-PA200 KUC-PA250
M L HL M L HL M L HL
±5℃ -5~-25℃ BELOW
-25℃
±5℃ -5~-25℃ BELOW
-25℃
±5℃ -5~-25℃ BELOW
-25℃
CU TUBE (CU 1220T), AL PLATE(AL 1100)
ELECTRIC HEATER-H, HOT GAS-G WATER-W
6.5 8.5 10 6.5 8.5 10 6.5 8.5 10
118.02 94.38 82.83 143.9 115.08 101 192.9 154.26 135.38
11,075 8,120 6,480 13,505 9,900 7,900 18,105 13,270 10,590
15,185 11,130 8,880 18,570 13,570 10,830 24,815 18,190 14,515
23,825 17,465 13,935 29,045 21,295 16,880 38,935 28,545 22,770
1.5KW * 2, 6P 1.5KW * 2, 6P 2.2KW * 2, 6P
13.6 / 7.8A 13.6 / 7.8A 19 / 11.2A
φ610 * 2 φ650 * 2 φ700 * 2
210 256 343
3φ     220 / 380V     60Hz
갈바륨 도금판(GV)
1.3KW * 9EA 1.5KW * 9EA 1.5KW * 12EA
0.9KW * 2EA 1.1KW * 2EA 1.2KW * 2EA
0.3KW * 2EA 0.3KW * 3EA 0.3KW * 2EA
3/4" 3/4" 3/4"
158 192 257
5/8" / 1 1/2" 3/4" / 2" 3/4" / 2"
1" / 2 1/2" 1 1/4" / 2 1/2" 1 1/4" / 3"
1900*600*1300 2240*600*1300 2250*690*1350
1625*800 1965*800 1975*890
1850*680*1400 2190*680*1400 2200*770*1500
1625*860 1965*880 1975*970
410 470 510

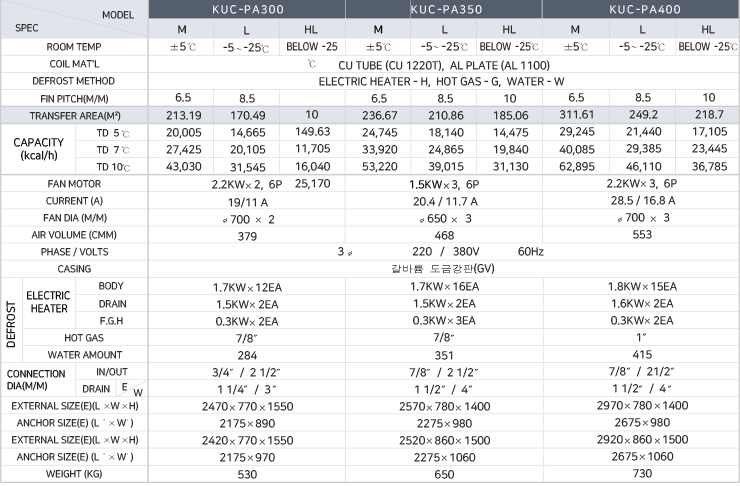

SPEC  \  MODEL
ROOM TEMP
COIL MAT'L
DEFROST METHOD
FIN PITCH(M/M)
TRANSFER AREA(M2)
CAPACITY
(kcal/h)
TD 5℃
TD 7℃
TD 10℃
FAN MOTOR
CURRENT(A)
FAN DIA(M/M)
AIR VOLUME(CMM)
PHASE/VOLTS
CASING
KyungDong R&H Ceiling & Floor Mounted Type PA Series 4 ELECTRIC
HEATER
BODY
DRAIN
F.G.H
HOT GAS
WATER AMOUNT
CONNECTION DIA(M/M) IN/OUT
DRAIN E/W
EXTERNAL SIZE(E)(L*W*H)
ANCHOR SIZE(E)(L'*W')
EXTERNAL SIZE(E)(L*W*H)
ANCHOR SIZE(E)(L'*W')
WEIGHT(KG)
KUC-PA300 KUC-PA350 KUC-PA400
M L HL M L HL M L HL
±5℃ -5~-25℃ BELOW
-25℃
±5℃ -5~-25℃ BELOW
-25℃
±5℃ -5~-25℃ BELOW
-25℃
CU TUBE (CU 1220T), AL PLATE(AL 1100)
ELECTRIC HEATER-H, HOT GAS-G WATER-W
6.5 8.5 10 6.5 8.5 10 6.5 8.5 10
213.19 170.49 149.63 236.67 210.86 185.06 311.61 249.2 218.7
20005 14665 11705 24745 18140 14475 29245 21440 17105
27425 20105 16040 33920 24865 19840 40085 29385 23445
43030 31545 25170 53220 39015 31130 62895 46110 36785
2.2KW * 2, 6P 1.5KW * 3, 6P 2.2KW * 3, 6P
19 / 11A 20.4 / 11.7A 28.5 / 16.8A
φ700 * 2 φ650 * 3 φ700 * 3
379 468 553
3φ     220 / 380V     60Hz
갈바륨 도금강판(GV)
1.7KW * 12EA 1.7KW * 16EA 1.8KW * 15EA
1.5KW * 2EA 1.5KW * 2EA 1.6KW * 2EA
0.3KW * 2EA 0.3KW * 3EA 0.3KW * 2EA
7/8" 7/8" 1"
284 351 415
3/4" / 2 1/2" 7/8" 2 1/2" 7/8" 2 1/2"
1 1/4" / 3" 1 1/2" / 4 " 1 1/2" / 4"
2470*770*1550 2570*780*1400 2970*780*1400
2175*890 2275*980 2675*980
2420*770*1550 2520*860*1500 2920*860*1500
2175*970 2275*1060 2675*1060
530 650 730
