Product Name

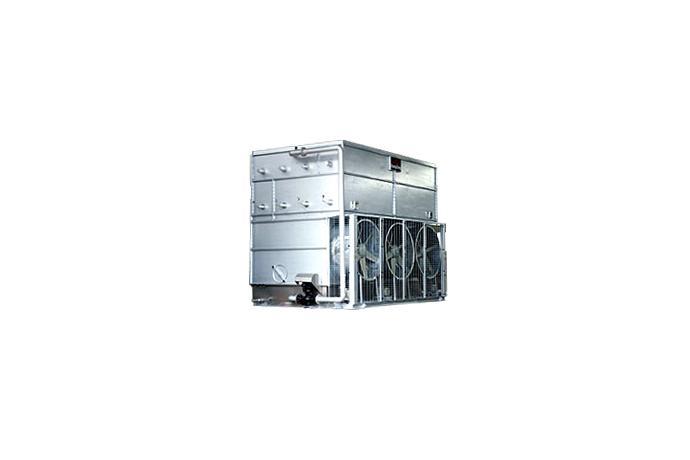

Forced draft type : Axial fan type
Model Name
KEC-F Series
Size
-
Weight
-
Product Details
1) Compact , lightened product.
2) Easy maintenance of Fan motor.
3) Easy installation in underground which has big air resistance.
4) Hihg quality parts used. ( 3years quality guaranteed)
5) Attractive appearance.
6) Plenty of manufacturing experience.
■ SPECIFICATION(STEEL TUBE)
| MODEL | CAPACITY (NH3) |
CONNECTIONS | AXIAL FAN MOTOR SET | PUMP SET | DIMENSION | WEIGHT | |||||||||||
| GAS/LIQUID | DRAIN | OVER FLOW |
MAKE UP |
AIR VOLUME |
FAN | MOTOR | WATER | PUMP | CONNE CTION |
Q'TY | LENGTH | WIDTH | HEIGHT | FE | |||
| SIZE | Q'TY | ||||||||||||||||
| RT | A | EA | A | A | A | m3/min | DIA(mm) | HPxP | l/min | HPxP | A | EA | mm | mm | mm | kg | |
| KEC-F160-F | 40 | 65/40 | 2 | 50 | 32 | 25 | 480 | 1000 ~ 2000 |
3kW ~ 11kW |
1000 | 1.5kW | 80 | 1 | 2320 | 2110 | 2990 | 2240 |
| KEC-F200-F | 50 | 2 | 790 | 1 | 2320 | 2060 | 3450 | 2640 | |||||||||
| KEC-F230-F | 60 | 2 | 790 | 1 | 2820 | 2360 | 3240 | 3010 | |||||||||
| KEC-F310-F | 80 | 80/50 | 2 | 1000 | 1 | 2820 | 2360 | 3600 | 3760 | ||||||||
| KEC-F390-F | 100 | 2 | 1250 | 1 | 2820 | 2360 | 3780 | 4440 | |||||||||
| KEC-F460-F | 125 | 2 | 65 | 40 | 1580 | 1 | 4320 | 2260 | 3450 | 4930 | |||||||
| KEC-F590-F | 150 | 80/65 | 2 | 1900 | 1500 | 2.2kW | 1 | 4320 | 2210 | 3780 | 5640 | ||||||
| KEC-F660-F | 170 | 2 | 80 | 2200 | 1 | 4320 | 2410 | 3780 | 5950 | ||||||||
| KEC-F770-F | 200 | 100/80 | 2 | 100 | 2500 | 1 | 5520 | 2660 | 3650 | 6940 | |||||||
| KEC-F860-F | 220 | 2 | 32 | 2700 | 1 | 5520 | 2410 | 4080 | 7690 | ||||||||
| KEC-F980-F | 250 | 2 | 3100 | 2000 | 3.7kW | 100 | 1 | 5520 | 2660 | 4080 | 8390 | ||||||
| KEC-F1090-F | 280 | 2 | 3400 | 1 | 5520 | 2910 | 4080 | 9170 | |||||||||
| KEC-F1160-F | 300 | 3 | 4080 | 2165 | 5.5kW | 1 | 5520 | 3090 | 4280 | 10090 | |||||||
