KyungDong R&H

KyungDong R&H

Induced draft type : Axial fan type

Model

Series

Evaporative Condensers


Transaction Process

Please contact the manufacturer/supplier.

Payment

Contact the manufacturer/supplier.

Delivery

Contact the manufacturer/supplier.

Shipment

Contact the manufacturer/supplier.

Origin

Korea (Republic of)


Description

 1) Compact , lightened product.
 2) Low noise level
 3) Low power consumption.
 4) Looftop, outdoor installation type.
 5) Hihg quality parts used. ( 3years quality guaranteed)
 6) Attractive appearance.
 7) Plenty of manufacturing experience.


■ 고효율의 알루미늄 파이프

The patent of develop products 20-1999-0004868

1. It provides High efficiency of heat transfer to flow into the bottom of coil with triangle sawing
2. It Provides maximized defronst effects to spray on the surface of aluminum constantly by triangle sawing on defrost.



기존품

특허품

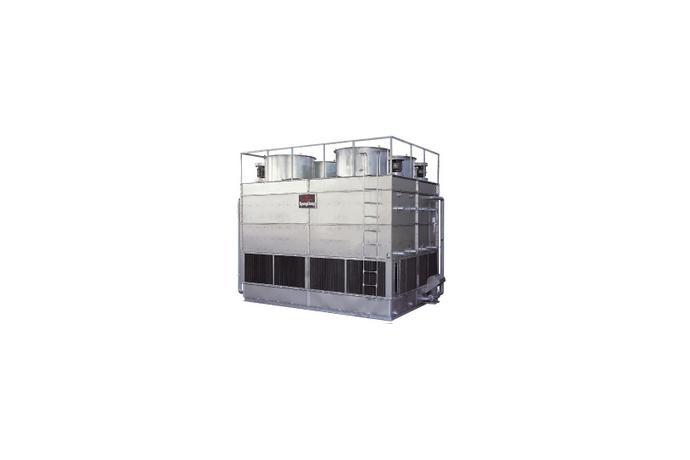

KyungDong R&H Induced draft type : Axial fan type KEC-I Series

KyungDong R&H Induced draft type : Axial fan type KEC-I Series 1



■ Various Condensation Pipe

1.Copper tube(Freon Only)
 Maximum of condensation efficiency by improvement of heat transfer efficiency
 Tune size 19.05mm, 0.8t above
 Apply to steel pipe at the connection of in out

2. Steel pipe (Applying various refrigerant)
 High strength of pipe due to using STPG 380 above
 High efficiency elliptic pipe of Dia.25mm 1.5t
 Hot dipped pipe for corrosion & heat resistant.

3. Aluminum (Ammonia only)
 Maximum capacity by triangle sawing elliptic pipe
 Perfect in corrosion
 Compact in operation & weight

KyungDong R&H Induced draft type : Axial fan type KEC-I Series 2



■ SPECIFICATION(STEEL TUBE)

MODEL CAPACITY
(NH3)
CONNECTIONS AXIAL FAN MOTOR SET PUMP SET DIMENSION WEIGHT
GAS/LIQUID DRAIN OVER
FLOW
MAKE
UP
AIR
VOLUME
FAN MOTOR WATER PUMP CONNE
CTION
Q'TY LENGTH
(Max)
WIDTH
(Max)
HEIGHT
(
FE
SIZE Q'TY
RT A EA A A A m3/min DIA(mm) HPxP l/min HPxP A EA mm mm mm kg
KEC-F160-I 40 65/40 2 50 32 25 480 1000
~
2000
3kW
~
11kW
1000 1.5kW 80 1 2320 1760 3100 2240
KEC-F200-I 50 2 790 1 2320 1710 3410 2640
KEC-F230-I 60 2 790 1 2820 2010 3200 3010
KEC-F310-I 80 80/50 2 1000 1 2820 2010 3610 3760
KEC-F390-I 100 2 1250 1 2820 2010 3800 4440
KEC-F460-I 125 2 65 40 1580 1 4320 1910 3410 4930
KEC-F590-I 150 80/65 2 1900 1500 2.2kW 1 4320 1860 3800 5640
KEC-F660-I 170 2 80 2200 1 5520 2060 3800 5950
KEC-F770-I 200 100/80 2 100 2500 1 5520 2310 3765 6940
KEC-F860-I 220 2 32 2700 1 5520 2060 3955 7690
KEC-F980-I 250 2 3100 2000 3.7kW 100 1 5520 2310 3955 8390
KEC-F1090-I 280 2 3400 1 5520 2560 4055 9170
KEC-F1160-I 300 3 4080 2165 5.5kW 1 5520 2740 4180 10090
