Overview

The types of operating principle of voltmeter are the moving coil type.

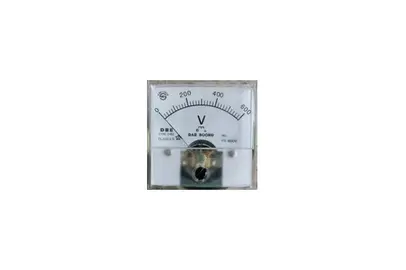

Model

Connection

Features

ㆍFor higher range than 750V, use external multiplier or voltage-dividing multiplier with a 1mA instrument.

ㆍThe D.C volmeter shuld be connected to the positive side line as connection diagram.

ㆍThe standard current consumption of these D.C voltmeter is 1mA.(1k Ω/V)

Meter rating

Type	직결사용		Shunt 사용
moving Coil	최저측정치	최대측정치	최저측정치	최대측정치
	50mV	750V	-	* / 100V

Specification

Shape of case	Type		Rated Curr.	Operating Princ	Accur(%)	Freq	Berden(VA)
Rectangular(60x60mm)	D-60	AC DC	150, 300V 1, 600V		±2.5 ±2.5	50~60Hz	0.5
							1K Ω/V
Rectangular(60x80mm)	D-68	AC DC	150, 300V 1, 600V		±2.5 ±2.5	50~60Hz	0.5
							1K Ω/V
Rectangular(80x60mm)	D-80	AC DC	150, 300V 1, 600V		±1.5 ±1.5	50~60Hz	0.5
							1K Ω/V
Rectangular(100x83mm)	D-100	AC DC	150, 300V 1, 600V		±1.5 ±1.5	50~60Hz	5.0, 0.5
							1K Ω/V
Rectangular(80x80mm) 광각	D-800	AC DC	150, 300V 1, 600V		±1.5 ±1.5	50~60Hz	0.5
							1K Ω/V
Rectangular(110x110mm) 광각	D-110	AC DC	150, 300V 1, 600V		±1.5 ±1.5	50~60Hz	0.5
							1K Ω/V
Rectangular(70ø)	D-70	AC DC	150, 300V 1, 600V		±2.5 ±2.5	50~60Hz	0.5
							1K Ω/V
Rectangular(72x72mm)	D-200	AC DC	150, 300V 1, 600V		±1.5 ±1.5	50~60Hz	0.5
							1K Ω/V
Rectangular(98x98mm)	D-300	AC DC	150, 300V 1, 600V		±1.5 ±1.5	50~60Hz	0.5
							1K Ω/V
